Sachiya Steel International is a trusted Pipe Fittings Manufacturer in India, established in 2005 and based in Mumbai. With over 20 years of industry experience, we manufacture and supply pipe fittings to customers in 85+ countries for industrial piping systems. Our range includes butt weld, forged, threaded and socket weld fittings in stainless steel, carbon steel, alloy steel, duplex steel and nickel alloys. We serve industries such as oil and gas, petrochemicals, chemicals, power generation and marine engineering.
We offer elbows, tees, reducers, caps, stub ends, couplings, unions and custom pipe fittings in various sizes and material grades. Our products meet applicable ASTM, ASME, ANSI, DIN and ISO standards, with inspection reports and material certificates available as required. Backed by ISO certifications and TÜV approval, we focus on consistent quality, material traceability, competitive pricing and timely delivery. We support standard orders, bulk requirements and project-specific needs.
What Are Pipe Fittings?
Pipe fittings are components used to connect pipes, change the direction of flow, adjust pipe sizes, create branches or close pipe ends. They help build safe and efficient piping systems for industrial applications where fluids and gases need to move smoothly.
Depending on the piping design and application, pipe fittings can be joined by welding, threading or bolting with flanges. Butt weld fittings are commonly used in large-diameter and high-pressure piping systems, while forged threaded and socket weld fittings are suitable for smaller pipe sizes. The right fitting depends on factors such as pressure, temperature, material and operating conditions.

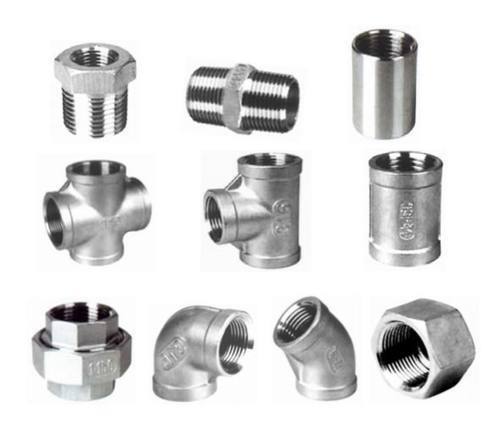

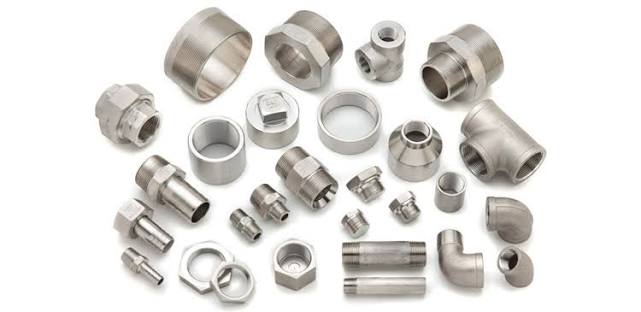

Pipe Fittings
High-quality industrial pipe fittings, including elbows, tees, reducers, caps and flanges, for demanding oil and gas, petrochemical, chemical, power generation, marine and engineering applications in various materials, sizes and grades.
Types Of Pipe Fittings We Supply
As a reliable pipe fittings manufacturer, we offer a wide range of fittings for industrial piping systems. Our products are available in different sizes, materials and connection types to meet various industry requirements.
- Elbows (45°, 90° and 180°): Change the direction of flow.
- Tees (Equal and Reducing): Split or combine flow between pipes.
- Reducers (Concentric and Eccentric): Connect pipes of different sizes.
- Caps: Close pipe ends.
- Stub Ends: Connect pipes to lap joint flanges.
- Crosses: Create four-way branch connections.
- Long Radius Bends (3D and 5D): Change flow direction with lower flow resistance.
- Couplings and Half Couplings: Join pipes or create branch connections.

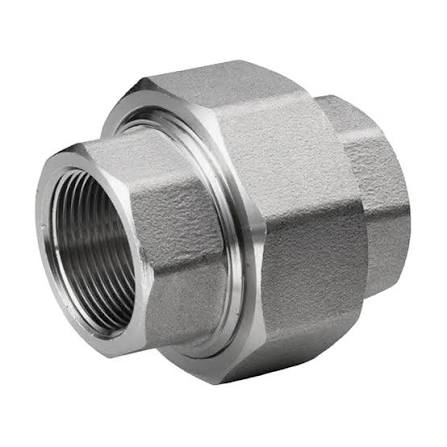

- Unions: Allow easy pipe disconnection for maintenance.
- Olets: Create branch connections from the main pipe.
- Pipe Nipples and Bushings: Connect pipes or adapt smaller connections.
We supply these fittings in stainless steel, carbon steel, alloy steel, duplex steel and nickel alloys, subject to availability, with material certificates and inspection documents as required.
Why Choose Pipe Fittings?
Pipe fittings help create strong, secure and efficient piping systems for industrial applications. They connect pipes, control flow direction, change pipe sizes and create branches to meet system requirements. Choosing the right pipe fittings helps reduce leakage risks, maintain smooth flow and support safe operation under different pressure and temperature conditions.
High-quality pipe fittings also improve system reliability, simplify installation and reduce maintenance needs. Available in materials such as stainless steel, carbon steel, alloy steel, duplex steel and nickel alloys, they suit a wide range of industries, including oil and gas, petrochemicals, chemical processing, power generation and marine engineering. The right fittings offer durability, corrosion resistance and dependable performance throughout the piping system’s service life.
Types of Pipe Fittings
Explore our range of industrial pipe fittings, including elbows, tees, reducers, caps, stub ends, bends and other fittings for diverse piping applications and engineering requirements. s.
Pipe Fittings
→

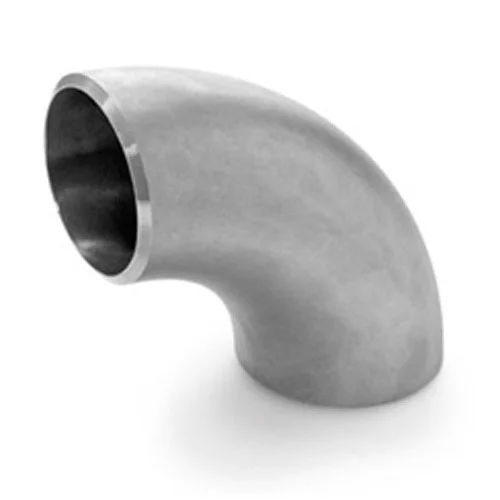

Elbows Fittings
→

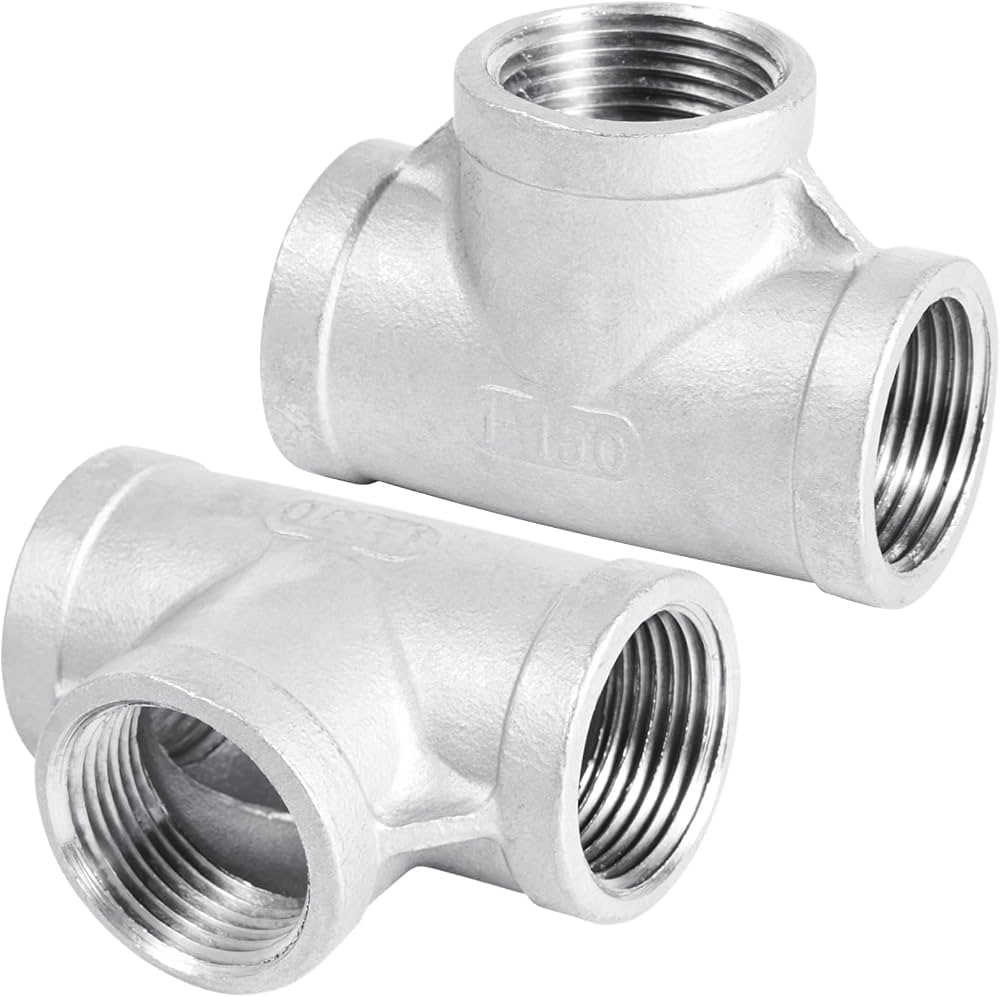

Tees Fittings
→

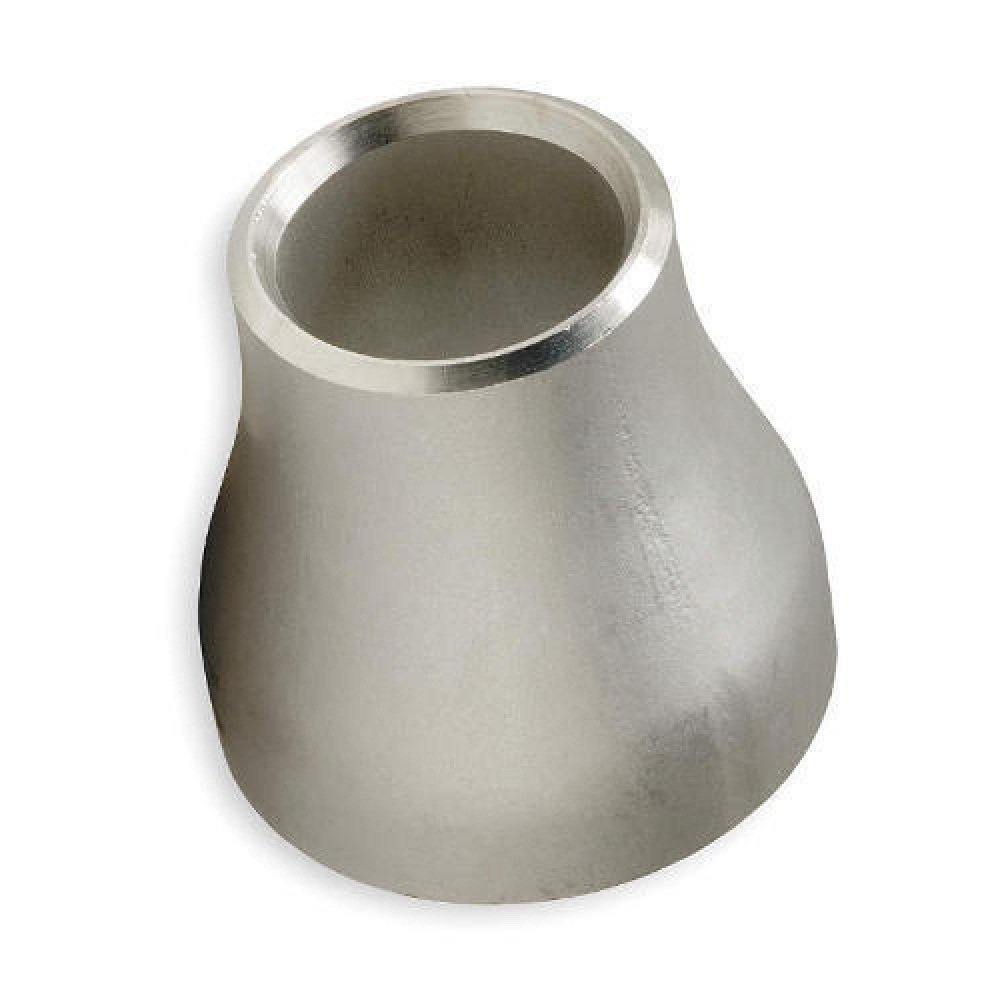

Reducers Fittings
→

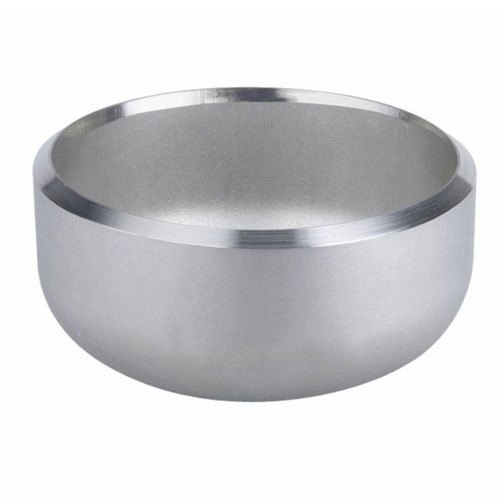

Caps Fittings
→

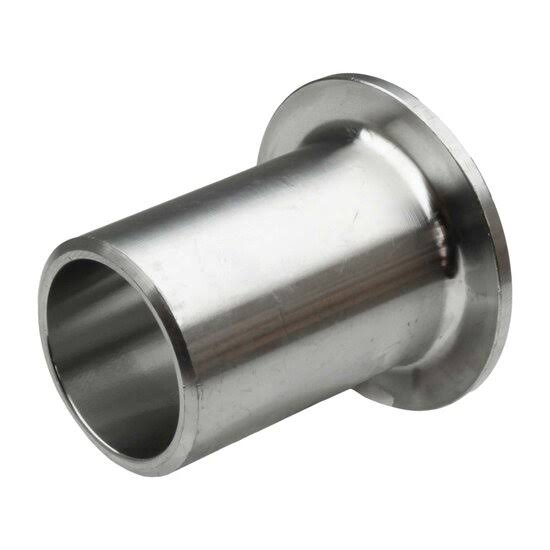

Stub Ends Fittings
→

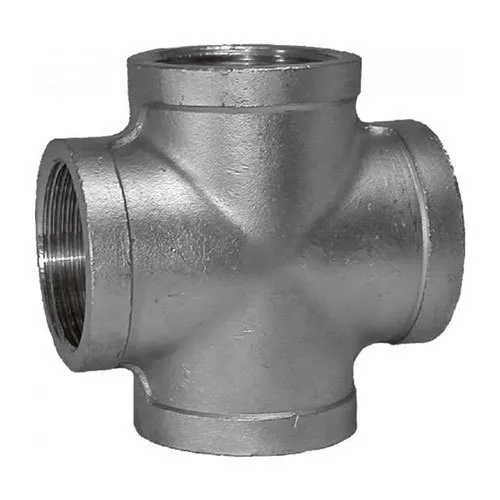

Crosses Fittings
→

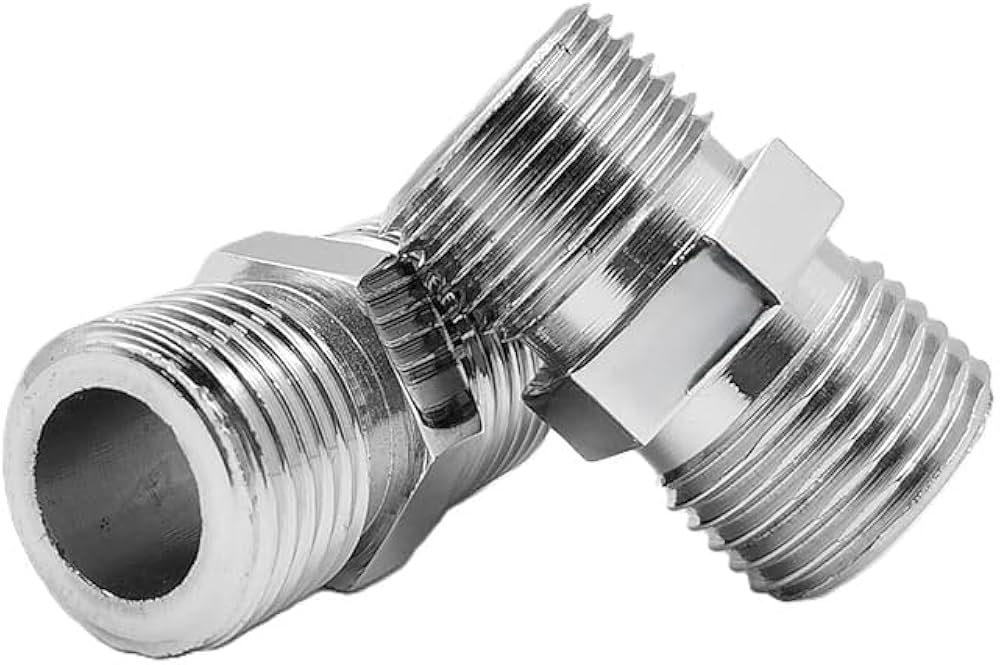

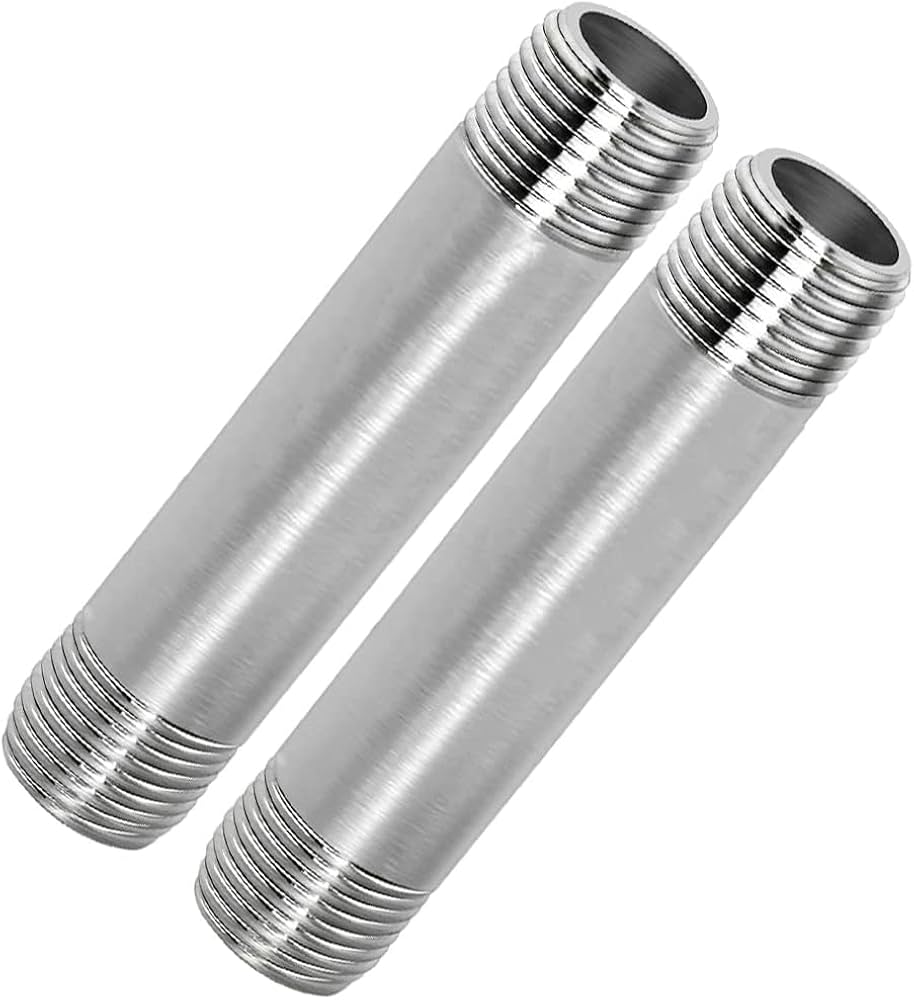

Nipples Fittings
→

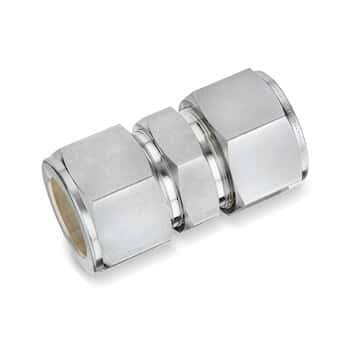

Unions Fittings
→

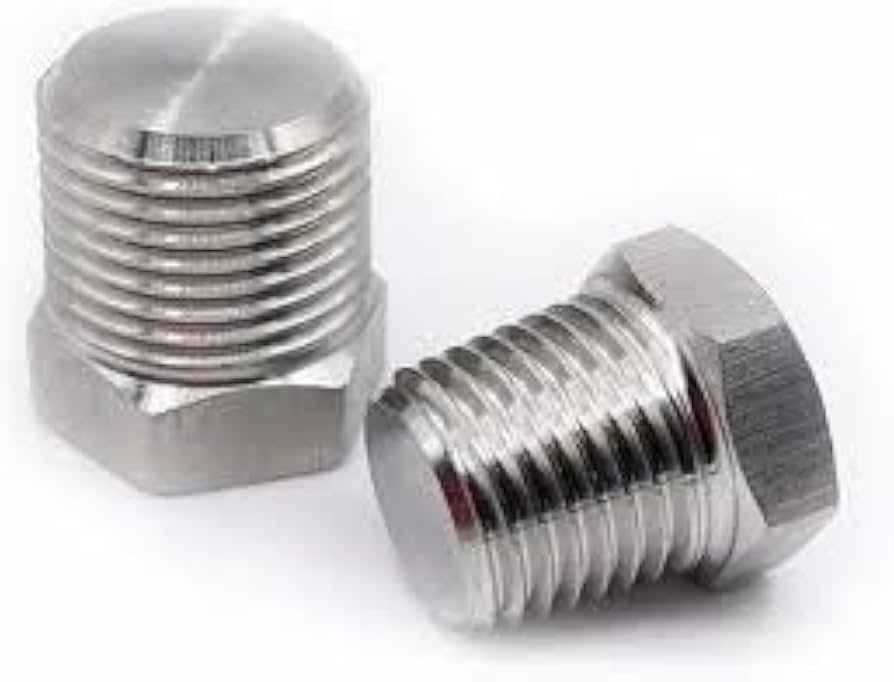

Plugs Fittings
→

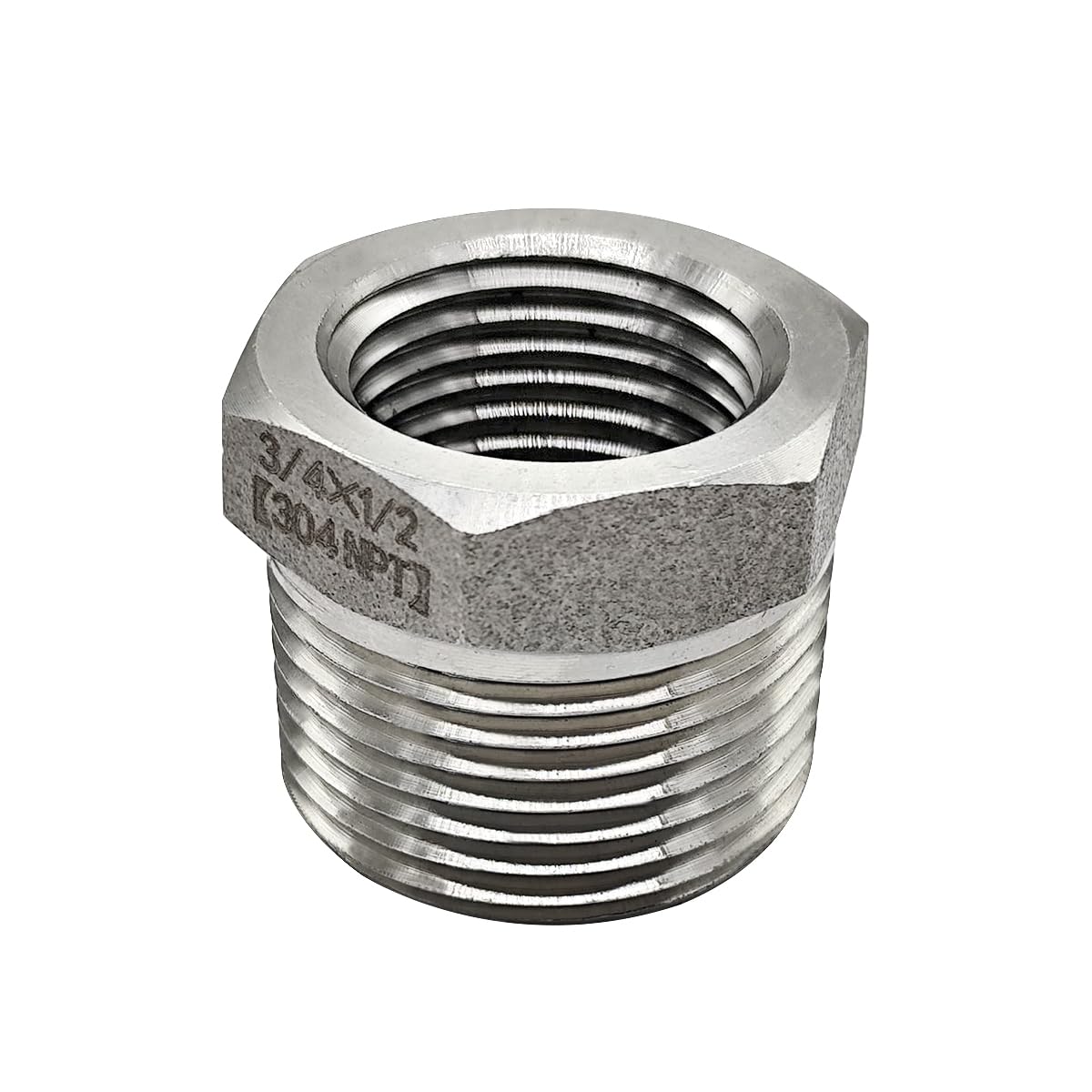

Bushings Fittings
→

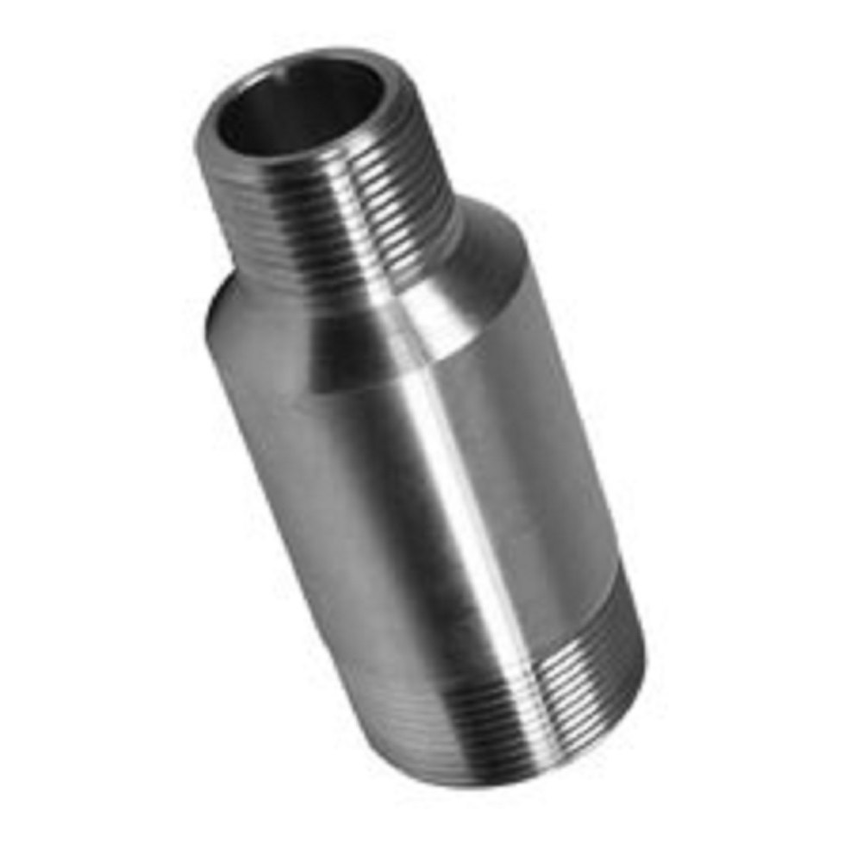

Swage Nipples
→Get Certified Pipe Fittings at Competitive Factory Prices
Pipe Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Pipe Fittings |
| Types | Butt weld fittings, forged fittings, bends, olets |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Butt Weld Size Range | 1/2" to 24" NB |
| Forged Fitting Size Range | 1/8" to 4" NB |
| Wall Thickness | Sch 5S, 10S, 10, 20, 40, STD, 80, XS, 160, XXS |
| Radius | Long radius (1.5D), short radius (1D) |
| Dimension Standards | ASME B16.9, ASME B16.28, ASME B16.11, MSS SP-43, MSS SP-97 |
| Material Standards | ASTM A234, A403, A420, A815, A182 |
| End Type | Bevel end per ASME B16.25, socket weld, threaded (NPT) |
| Forged Pressure Class | 2000#, 3000#, 6000#, 9000# |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, stress relieving, solution annealing |
| Testing | PMI, hardness, hydrostatic, dimensional, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| Custom Work | Special sizes, angles and spools on request |
Pipe Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 also carries titanium at 5 times the carbon content (minimum). Duplex S31803 carries 0.08–0.20% nitrogen.
Pipe Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Pipe Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where Teams Use This Size |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument and sample lines |
| 25 | 1" | 33.4 | Utility air and chemical dosing |
| 50 | 2" | 60.3 | Process branches and cooling water |
| 80 | 3" | 88.9 | Fire water and fuel lines |
| 100 | 4" | 114.3 | Process headers and steam lines |
| 150 | 6" | 168.3 | Pump suction and discharge |
| 200 | 8" | 219.1 | Main process lines |
| 250 | 10" | 273.1 | Plant headers and power plants |
| 300 | 12" | 323.9 | Cooling water and transfer lines |
| 400 | 16" | 406.4 | Refinery and large process piping |
| 600 | 24" | 609.6 | Water transmission and pipelines |
Pipe Fittings Dimension Chart (ASME B16.9)
All dimensions are in mm.
| NPS | Pipe OD | 90° Long Radius Elbow (A) | 90° Short Radius Elbow | Equal Tee (C = M) | Cap Length (E) |
|---|---|---|---|---|---|
| 1" | 33.4 | 38 | 25 | 38 | 38 |
| 2" | 60.3 | 76 | 51 | 64 | 38 |
| 3" | 88.9 | 114 | 76 | 86 | 51 |
| 4" | 114.3 | 152 | 102 | 105 | 64 |
| 6" | 168.3 | 229 | 152 | 143 | 89 |
| 8" | 219.1 | 305 | 203 | 178 | 102 |
| 10" | 273.1 | 381 | 254 | 216 | 127 |
| 12" | 323.9 | 457 | 305 | 254 | 152 |
| 16" | 406.4 | 610 | 406 | 305 | 178 |
| 20" | 508.0 | 762 | 508 | 381 | 229 |
| 24" | 609.6 | 914 | 610 | 432 | 267 |
A long radius elbow measures 1.5 times the nominal size from the centre to the weld end. A short radius elbow measures 1 times.
Forged Pipe Fittings Pressure Class
| Connection | Available Classes | Typical Sizes |
|---|---|---|
| Socket weld | 3000#, 6000#, 9000# | 1/8" to 4" |
| Threaded (NPT) | 2000#, 3000#, 6000# | 1/8" to 4" |
Pick socket weld when you need a stronger, leak-free joint on small-bore high-pressure lines. Pick threaded when the line needs quick assembly and low-pressure service.
Pipe Fittings Price
Pipe fitting prices change with the metal market, so we quote each order on its own. These are the main points that move the price:
- Material grade: Stainless, duplex and nickel alloys cost more than carbon steel, because nickel and molybdenum prices swing.
- Size and schedule: A bigger size or thicker wall uses more steel.
- Fitting type: Forged and butt weld fittings follow different routes and different costs.
- Quantity: Larger orders bring down the cost per piece.
- Testing and certificates: NDT, impact tests and 3.2 inspection add cost.
- Finish and packing: Polishing, pickling and special crates add a little.
| Material | How We Quote | Main Cost Driver |
|---|---|---|
| Carbon steel (WPB, WPL6) | Per piece or per kg | Steel price and wall thickness |
| Stainless steel (304, 316L, 321) | Per piece or per kg | Nickel and molybdenum |
| Duplex and super duplex | Per piece or per kg | Nickel, chrome and nitrogen |
| Alloy steel (WP11, WP22, WP91) | Per piece or per kg | Chrome and moly content |
Send us your list with size, schedule, grade and quantity, and we will reply with a clear quote.
Pipe Fittings Grades We Supply
We manufacture, supply and export pipe fittings in a wide range of material grades to meet different industrial requirements. Our range includes carbon steel, low-temperature carbon steel, alloy steel, stainless steel, duplex steel, super duplex steel and nickel alloy fittings.
- Carbon Steel – ASTM A234 WPB: For oil, gas, water and steam piping systems.
- Low-Temperature Carbon Steel – ASTM A420 WPL6: For low-temperature and cold-service applications.
- Alloy Steel – ASTM A234 WP11, WP22, WP91: For high-temperature piping in power plants and industrial systems.
- Stainless Steel – ASTM A403 WP304, 304L, 316, 316L, 321, 347: For applications requiring corrosion resistance.
- Duplex Steel – ASTM A815 UNS S31803/S32205: For high-strength piping and corrosive environments.
- Super Duplex Steel – UNS S32750: For demanding offshore, marine and desalination applications.
- Nickel Alloys – Inconel, Monel and Hastelloy: For specialised applications involving high temperatures and corrosive conditions.
As a pipe fittings supplier and exporter, we handle standard, bulk and project-specific orders for domestic and international customers. Material grades are supplied according to project specifications and availability, with a focus on quality, traceability and timely delivery.
Pipe Fittings Standards and Certifications
As an experienced Pipe Fittings Supplier in India, we make and certify to these standards:
- ASME B16.9: Factory-made butt weld elbows, tees, reducers and caps.
- ASME B16.28: Short radius elbows and returns.
- ASME B16.11: Forged socket weld and threaded fittings.
- MSS SP-43: Light-wall stainless butt weld fittings.
- MSS SP-75: High-test carbon steel fittings, including WPHY grades.
- MSS SP-97: Weldolet, sockolet and threadolet branch fittings.
- ASME B16.25: Butt weld end preparation.
- ASTM A234, A403, A420, A815: Material grades for carbon, stainless, low temperature and duplex fittings.
- ISO 9001:2015, ISO 14001:2015, ISO 45001:2018: Quality, environment and safety systems.
- PED 2014/68/EU: European pressure equipment compliance.
Certificates we issue:
- Mill Test Certificate, EN 10204 3.1
- Chemical Composition and Mechanical Test Report
- Dimensional Inspection Report
- PMI Report
- Third-Party Inspection Certificate on request
Pipe Fittings Quality Testing
Every pipe fittings supplier in India says "tested", so here is what we actually do on each lot.
- Positive Material Identification (PMI): We scan every fitting with an XRF gun to confirm the grade.
- Chemical and Mechanical Testing: We test samples for composition, tensile strength, yield and hardness.
- Dimensional Inspection: We measure centre-to-end, wall and bevel against ASME B16.9.
- Hydrostatic Testing: We pressure test fittings when your order calls for it.
- Non-Destructive Testing: We run dye penetrant, magnetic particle, radiography or ultrasonic checks.
- Intergranular Corrosion Test: We run ASTM A262 on stainless fittings on request.
- Impact Testing: We test low temperature grades at the temperature you specify.
- Visual Inspection: We check surface, weld ends and markings on every piece before packing.
Pipe Fittings Applications
- Oil and Gas: Pipelines, wellhead lines and gas gathering systems.
- Refineries and Petrochemical: Process headers, furnace lines and reactor piping.
- Power Plants: Boiler feed, steam and cooling water lines.
- Chemical Processing: Acid, alkali and solvent piping in 316L and duplex.
- Pharmaceutical and Food: Hygienic, polished stainless lines.
- Water Treatment and Desalination: Intake, brine and distribution piping.
- Shipbuilding and Offshore: Seawater cooling and fire fighting lines.
- Infrastructure and Construction: Fire protection, HVAC and utility piping.
Pipe Fittings Packaging and Shipping
We wrap each fitting in plastic, fit end caps over the weld ends, and pack the lot into plywood boxes or wooden crates. Heavy orders go on pallets, strapped and wrapped against moisture. Stainless fittings travel in clean packs with no contact with carbon steel. Each shipment includes the commercial invoice, packing list, EN 10204 3.1 mill test certificate, certificate of origin and bill of lading. We add inspection reports whenever your order asks for them.
Why Choose Sachiya Steel International as Your Pipe Fittings Manufacturer in India?
You should choose us because we have been manufacturing, supplying and exporting pipe fittings since 2005, with over 20 years of industry experience. We serve customers in 85+ countries and handle orders with a manufacturing and supply capacity of up to 100 tons per month. Our expertise covers a wide range of sizes and grades, including carbon steel, stainless steel, alloy steel, duplex steel, super duplex steel and nickel alloys.
We focus on quality and compliance, backed by ISO 9001:2015 and ISO 14001:2015 certifications, TÜV approval and MSME registration. We manufacture and supply pipe fittings according to applicable ASTM, ASME and MSS standards and customer specifications, with inspection reports and material certificates available as required.
As a pipe fittings supplier in India, we offer a wide product range, competitive pricing and export support for standard, bulk and project-specific orders. We also coordinate documentation, packaging and shipping to help customers meet their project requirements and receive their orders on time.
Countries We Export To
We work as a pipe fittings manufacturer and supplier to over 85+ countries, serving oil and gas, power, chemical and water treatment projects. Our buyers range from EPC contractors and plant owners to traders who stock fittings for their own customers.
- North America: USA, Canada, Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands, Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, Australia
- Africa: South Africa, Nigeria, Egypt, Kenya
- South America: Brazil, Chile, Peru
Every shipment carries an EN 10204 3.1 certificate, and we arrange 3.2 or third-party inspection on request. We pack for sea freight and prepare each export document ourselves, so your cargo clears customs without delays.
