Sachiya Steel International is a trusted Tees Fittings Manufacturer in India, with 20+ years of industry experience in manufacturing, supplying, and exporting industrial pipe fittings. Established in 2005 and based in Mumbai, we offer equal and reducing tees in butt weld and forged forms. Our product range includes carbon steel, stainless steel, duplex steel, and alloy steel tees for various industrial piping applications.
We supply butt weld tees in sizes from 1/2″ to 24″ NB, along with forged tees in small bore sizes. Our products follow applicable ASTM, ASME, and other relevant standards, with EN 10204 3.1 material certificates available as required. With a monthly manufacturing and export capacity of up to 100 tonnes and a customer base spanning 85+ countries, we focus on quality, material traceability, competitive pricing, and reliable worldwide delivery.
What Are Tee Fittings?
Tee fittings are T-shaped pipe fittings with three openings. Two openings sit in a straight line, known as the run, while the third connects at a 90° angle and is called the branch or outlet. These fittings connect a branch pipe to a main pipeline, allowing fluid to split into two flows or two flows to combine into one.
Fitters install tee fittings between pipes using butt welding, threading, or socket welding, depending on the fitting design. They are available in carbon steel, stainless steel, alloy steel, duplex steel, and other materials to suit different operating conditions. Tee fittings are widely used in industrial piping systems for transporting liquids and gases, with the required material, dimensions, and connection method depending on the system design and application.

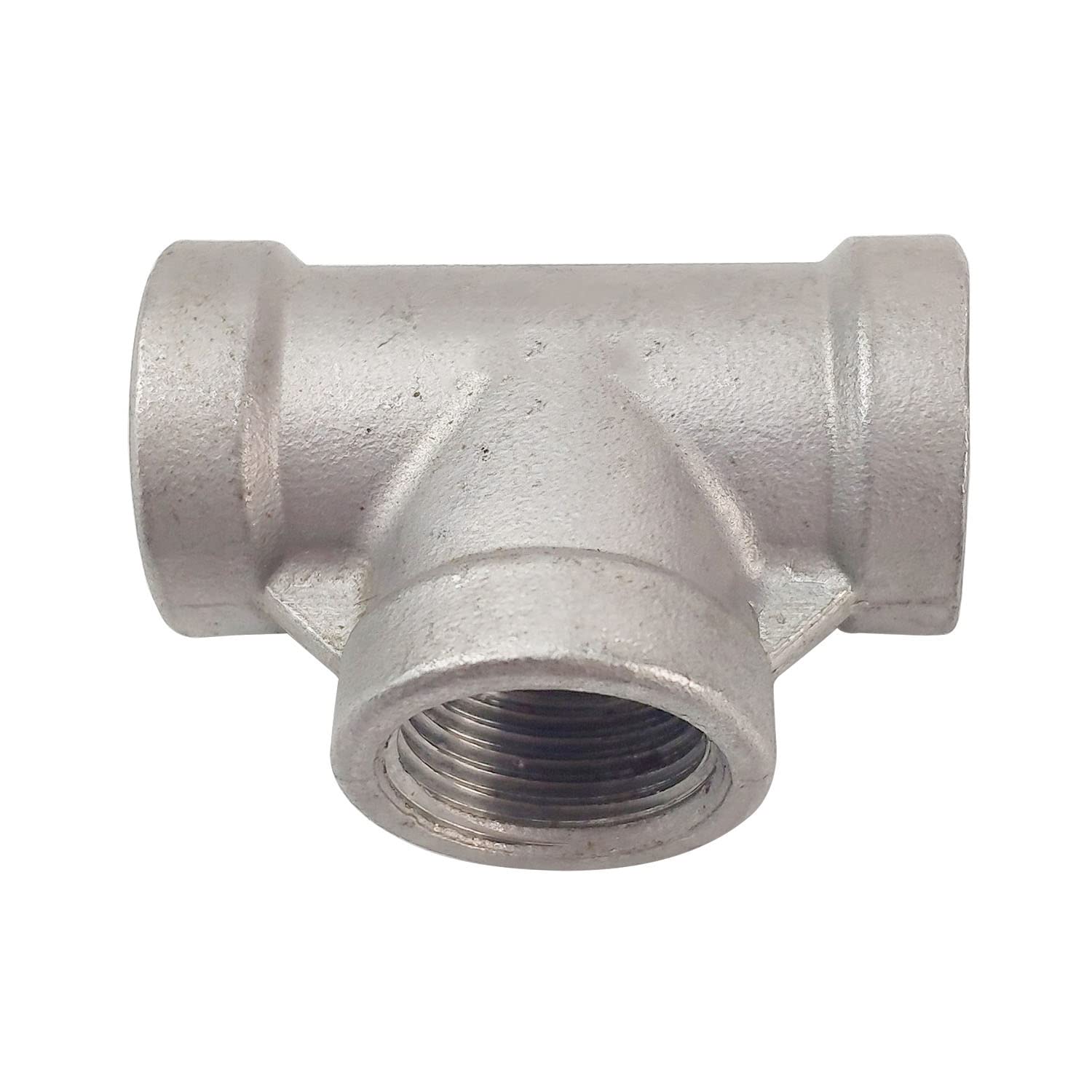

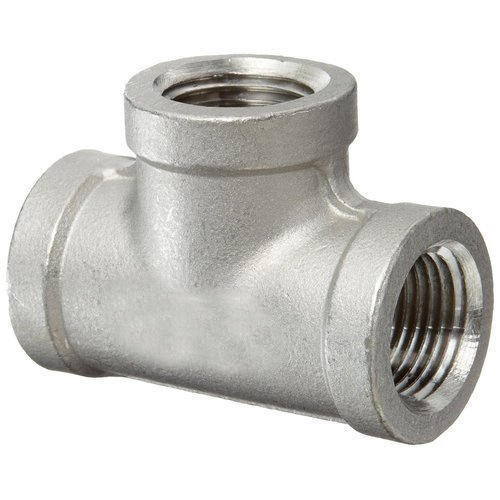

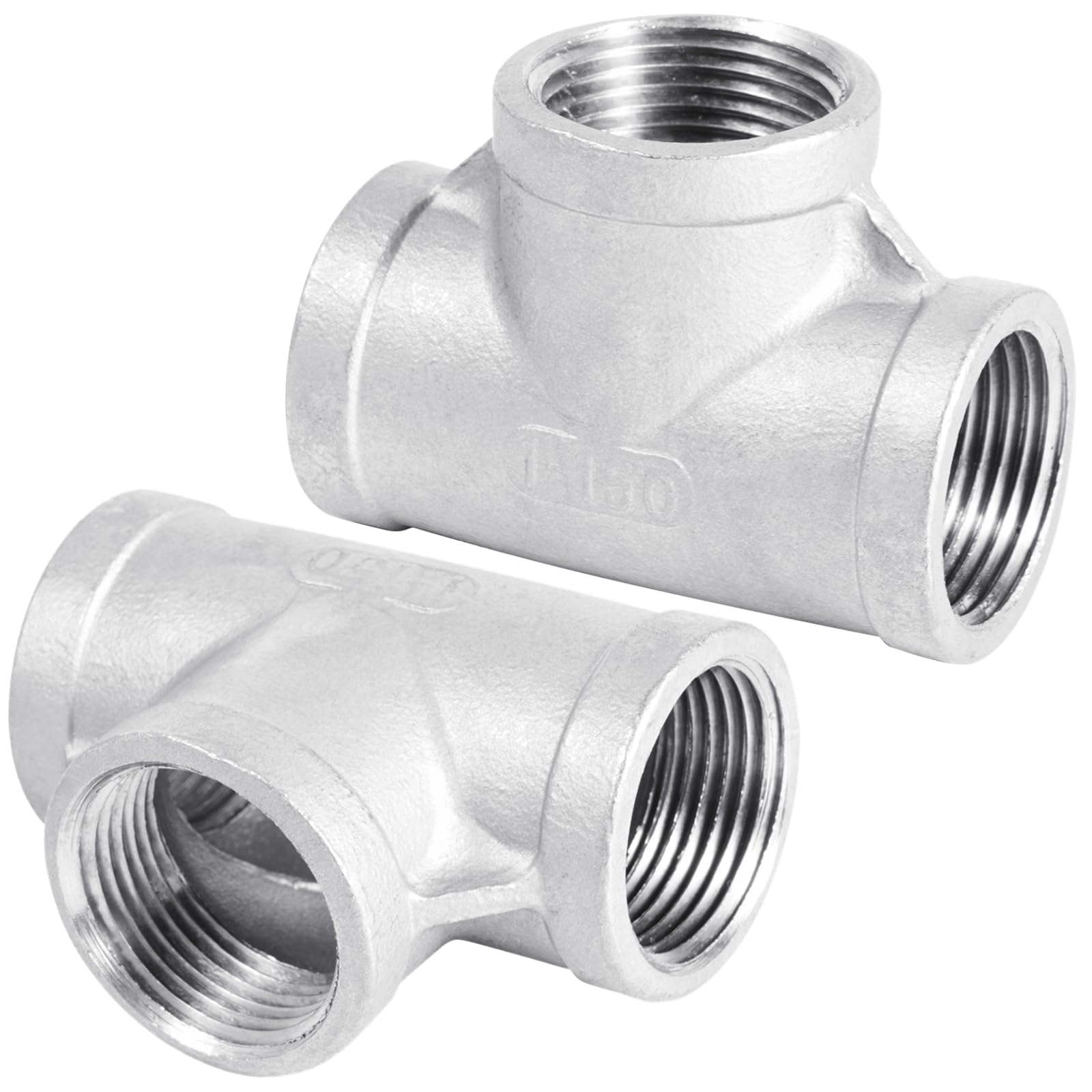

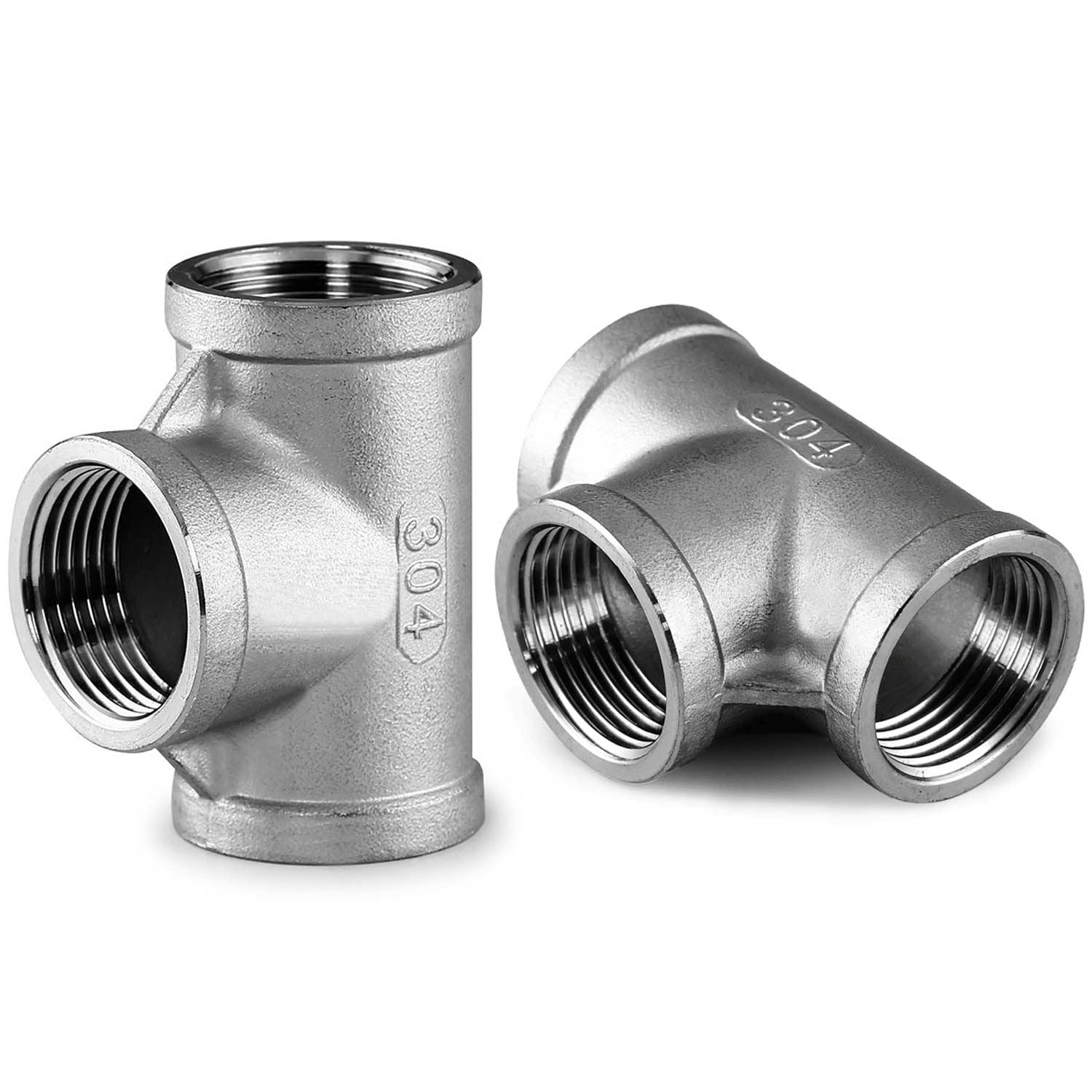

Tee Fittings
High-quality industrial tee fittings, available in sizes ½″–48″ and grades WPB, WPL6, WP304/304L and WP316/316L, with TUV and ISO certified quality for demanding oil and gas, petrochemical, chemical, power generation, marine and engineering applications.
Tee Fittings Types We Supply
As an experienced tee fittings manufacturer, we offer a range of fittings for different pipe sizes, connection methods, materials, and operating conditions.
- Equal Tee: Features a run and branch of the same diameter, making it suitable for piping systems that need equal-sized branch connections.
- Reducing Tee: Connects a smaller branch to a larger main pipeline, allowing the line diameter to change at the branch point.
- Seamless Tee: Made from seamless pipe, this type suits applications where seamless construction is specified for pressure and temperature requirements.
- Welded Tee: Available in larger sizes for industrial piping projects, with weld inspection options based on project specifications.
- Forged Socket Weld Tee: Designed for small-bore piping, with ASME B16.11 pressure classes including 3000, 6000, and 9000, where applicable.
- Forged Threaded Tee: Features threaded ends, commonly NPT, for screw-connected piping systems. Available pressure classes depend on the specified requirements.
- Stainless Steel Tee: Supplied in ASTM A403 grades and construction types, including WP-S, WP-W, and WP-WX, according to the required specifications.
- Barred Tee: Includes bars across the branch opening to help guide pipeline inspection pigs along the main line without entering the branch.
Each type serves a different piping requirement, so the suitable option depends on the connection design, material grade, dimensions, and operating conditions.
Why Choose Tee Fittings?
Tee fittings provide a simple and effective way to create branch connections in piping systems. Their three-opening design allows fluid to split into separate lines or combine from different pipelines, making them useful for a wide range of industrial applications.
- Easy Flow Distribution: Direct fluid through a main pipeline and a connected branch line.
- Flexible Piping Layouts: Create branch connections without designing an entirely separate piping arrangement.
- Multiple Connection Options: Choose butt weld, threaded, or socket weld connections based on the system design.
- Material Versatility: Available in carbon steel, stainless steel, alloy steel, duplex steel, and other materials to suit different service conditions.
- Reliable Pipe Connections: Properly selected and installed tee fittings help maintain the strength and integrity of piping systems.
- Wide Industrial Use: Suitable for oil and gas, chemical processing, petrochemical, power generation, and water treatment systems.
Choosing the right tee fitting depends on pipe diameter, pressure, temperature, fluid type, material grade, and the required connection method.
Types of Tees Fittings
Explore our range of industrial tee fittings, including equal tees, straight tees, reducing tees, threaded tees, unequal tees, barred tees and lateral tees for diverse piping applications.
Equal Tee Fittings
→
Straight Tee Fittings
→
Reducing Tee Fittings
→
Threaded Tee Fittings
→
Unequal Tee Fittings
→
Barred Tee Fittings
→
Lateral Tee Fittings
→Get Certified Tee Fittings at Competitive Factory Prices
Tees Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Tees Fittings |
| Types | Equal tee, reducing tee, barred tee |
| Butt Weld Size Range | 1/2" to 24" NB |
| Forged Size Range | 1/8" to 4" NB |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-75 |
| Material Standards | ASTM A234, A403, A420, A815, A182 |
| End Type | Bevel end per ASME B16.25, socket weld, threaded |
| Forged Pressure Class | 2000#, 3000#, 6000#, 9000# |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Run size × outlet size, schedule, grade and standard (for example: Tee 6" × 4", Sch 40, A234 WPB, ASME B16.9) |
| Custom Work | Special sizes, walls and grades |
Tees Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
Tees Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Tees Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where This Tee Size Goes |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument and sample branches |
| 25 | 1" | 33.4 | Chemical dosing and utility air branches |
| 50 | 2" | 60.3 | Cooling water and process branches |
| 80 | 3" | 88.9 | Fire water and fuel branches |
| 100 | 4" | 114.3 | Steam and process header branches |
| 150 | 6" | 168.3 | Pump manifold branches |
| 200 | 8" | 219.1 | Main process header branches |
| 300 | 12" | 323.9 | Transfer and cooling line branches |
| 400 | 16" | 406.4 | Refinery and plant main branches |
| 600 | 24" | 609.6 | Pipeline and water main branches |
Tees Fittings Dimension Chart (ASME B16.9)
For an equal tee, C is the centre-to-end of the run and M is the centre-to-end of the outlet, and both values match. All dimensions are in mm.
| NPS | Pipe OD | Run and Outlet (C = M) | Sch 40 Wall | Sch 80 Wall |
|---|---|---|---|---|
| 1" | 33.4 | 38 | 3.38 | 4.55 |
| 1 1/4" | 42.2 | 48 | 3.56 | 4.85 |
| 1 1/2" | 48.3 | 57 | 3.68 | 5.08 |
| 2" | 60.3 | 64 | 3.91 | 5.54 |
| 2 1/2" | 73.0 | 76 | 5.16 | 7.01 |
| 3" | 88.9 | 86 | 5.49 | 7.62 |
| 4" | 114.3 | 105 | 6.02 | 8.56 |
| 5" | 141.3 | 124 | 6.55 | 9.53 |
| 6" | 168.3 | 143 | 7.11 | 10.97 |
| 8" | 219.1 | 178 | 8.18 | 12.70 |
| 10" | 273.1 | 216 | 9.27 | 15.09 |
| 12" | 323.9 | 254 | 10.31 | 17.48 |
| 14" | 355.6 | 279 | 11.13 | 19.05 |
| 16" | 406.4 | 305 | 12.70 | 21.44 |
| 20" | 508.0 | 381 | 15.09 | 26.19 |
| 24" | 609.6 | 432 | 17.48 | 30.96 |
Tees Fittings Price
We quote tees fittings order by order, because steel and nickel prices change often. Grade moves the price most: a 316L or duplex tee costs more than a WPB carbon steel one, since nickel and molybdenum raise the metal cost. Size and wall come next, because a large, thick-walled tee uses much more steel than a small, thin one.
Tee type, quantity and testing also shift the number. A reducing tee costs differently from an equal tee because the forming route changes, a larger lot lowers the cost per piece, and radiography, impact tests or 3.2 inspection add cost. Send us your list with run size, outlet size, schedule, grade and quantity, and we will send a clear quote.
| Material | Quote Basis | What Moves the Price |
|---|---|---|
| Carbon steel (WPB, WPL6) | Per piece or per kg | Steel rate and wall thickness |
| Stainless steel (304, 316L, 321) | Per piece or per kg | Nickel and molybdenum rates |
| Duplex and super duplex | Per piece or per kg | Nickel, chrome and nitrogen content |
| Alloy steel (WP11, WP22, WP91) | Per piece or per kg | Chrome and moly content |
Key Features of Tee Fittings
Tee fittings help create reliable branch connections in industrial piping systems. Their design, material options, and dimensional specifications make them suitable for different flow requirements and installation conditions.
- Three-Way Flow Connection: Connects three pipe sections, allowing fluid to split into separate lines or combine from different lines.
- Equal and Reducing Designs: Available with equal-sized openings or a smaller branch outlet to match the required piping layout.
- Reinforced Branch Area: Properly designed tees provide suitable wall thickness around the branch connection to handle stresses within specified operating conditions.
- Standardized Dimensions: Dimensions can follow ASME B16.9 requirements for applicable butt-weld fittings, supporting consistent pipe alignment and installation.
- Wide Size and Wall Thickness Range: Available in sizes from 1/2" to 24" NB, with wall thicknesses from Schedule 5S to XXS, depending on material and specifications.
- Multiple Material Options: Includes carbon steel, low-temperature carbon steel, alloy steel, stainless steel, duplex steel, and nickel alloys.
- Weld-Ready Ends: Bevel ends can be prepared according to ASME B16.25 requirements for compatible butt-weld connections.
- Material Traceability: Product markings and material test certificates help verify the specified grade, dimensions, schedule, and heat number.
Tee Fittings Grades We Supply
Different piping systems require materials that can handle specific temperatures, pressures, and corrosive conditions. As a tee fittings supplier, we offer a broad selection of material grades for industrial applications, from standard pipeline service to high-temperature and corrosion-resistant environments.
- Carbon Steel – ASTM A234 WPB: Commonly used for oil, gas, steam, and water pipelines where strength and cost efficiency are important.
- Low-Temperature Carbon Steel – ASTM A420 WPL6: Suitable for cold-service piping and low-temperature applications, including LNG systems.
- High-Yield Carbon Steel – MSS SP-75 WPHY Grades: Designed for pipeline applications that require high strength and specific mechanical properties.
- Alloy Steel – ASTM A234 WP11, WP22, WP91: Used in boilers, power plants, and high-temperature piping systems.
- Stainless Steel – ASTM A403 WP304, WP304L, WP316, WP316L, WP321, WP347: Suitable for chemical processing, food production, and pharmaceutical systems where corrosion resistance matters.
- Duplex Steel – ASTM A815 UNS S31803 and S32205: Offers a combination of strength and corrosion resistance for demanding industrial and offshore applications.
- Super Duplex Steel – UNS S32750: Suitable for seawater handling, desalination plants, and chloride-rich environments.
- Forged Steel – ASTM A105, A350 LF2, and applicable ASTM A182 grades: Used for forged tee fittings in different pressure and temperature conditions, depending on the material grade.
- Nickel Alloys – Inconel, Monel, and Hastelloy: Available for specific orders that require resistance to corrosion, heat, or aggressive chemicals.
Material availability depends on the required fitting type, dimensions, and specifications. We can arrange material inspection, traceability, and supporting documentation according to the order requirements.
Tee Fittings Standards and Certifications
As an experienced tee fittings supplier in india, we manufacture and supply fittings according to recognized industry standards to meet project specifications and quality requirements. Our butt weld tees follow ASME B16.9, light-wall stainless steel tees follow MSS SP-43, high-yield carbon steel tees follow MSS SP-75, and forged socket weld and threaded tees follow ASME B16.11, where applicable. We also follow ASME B16.25 for weld-end preparation, with material specifications including ASTM A234, A403, A420, A815, and A182, depending on the fitting type.
Our quality management systems hold ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications. Documentation can include EN 10204 3.1 Mill Test Certificates, chemical and mechanical test reports, dimensional inspection reports, and PMI reports, according to order requirements. We can also arrange EN 10204 3.2 certification and third-party inspections when specified. PED 2014/68/EU compliance can be supported for applicable projects, subject to the product scope and required conformity assessment.
Tees Fittings Applications
- Oil and Gas: Pipeline and gathering systems use tees fittings to branch flow off headers and manifolds.
- Refineries and Petrochemical: Alloy steel tees split hot process streams in furnace, column and reactor piping.
- Power Plants: WP22 and WP91 tees carry steam and boiler feed branches at high temperature.
- Chemical Processing: Stainless steel 316L and duplex tees branch acid, alkali and solvent lines.
- Pharmaceutical and Food: Polished stainless steel tees give smooth, easy-to-clean branches in hygienic piping.
- Water Treatment and Desalination: Super duplex and 316L tees handle brine and seawater branches.
- Fire Protection and HVAC: Carbon steel equal and reducing tees feed sprinkler, chilled water and utility mains, and many projects source them from a Tees Fittings Supplier in India like us.
- Shipbuilding and Offshore: Compact tees branch seawater cooling and fire fighting lines on vessels and platforms.
Why Choose Sachiya Steel International as Your Tee Fittings Manufacturer in India?
With 20+ years of industry experience since 2005, we understand the technical requirements involved in supplying tee fittings for industrial piping systems. We offer equal, reducing, barred, lateral, and other tee fittings in butt weld and forged designs, with sizes ranging from 1/2" to 24" NB, depending on the fitting type. Custom dimensions and specifications are also available to match project drawings.
Our material range covers carbon steel, stainless steel, low-temperature steel, alloy steel, duplex, super duplex, and nickel alloys. We manufacture and supply fittings according to applicable ASTM, ASME, and MSS standards, with EN 10204 3.1 material certificates, inspection reports, and third-party inspection options available as required. Our ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications support our focus on quality and safety.
With a manufacturing and export capacity of up to 100 tonnes per month, we serve customers across 85+ countries. We focus on accurate specifications, material traceability, competitive pricing, and dependable delivery for standard orders and project-specific requirements..
Countries We Export To
We ship tees fittings to more than 85+ countries, and we count among the Tees Fittings Suppliers that serve refineries, power stations, water plants and shipyards worldwide.
- North America: USA, Canada, and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands, and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, and Australia
- Africa: South Africa, Nigeria, Egypt, and Kenya
- South America: Brazil, Chile, and Peru
We coordinate shipments according to product specifications, order quantities, packaging requirements, and destination regulations. Export documentation and material certificates can be provided as required, helping ensure that tee fittings reach international destinations with the necessary paperwork for industrial projects.
