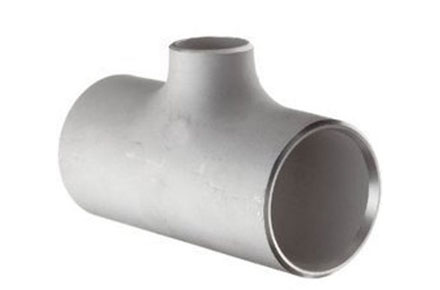

Unequal Tee Fittings Manufacturer in India
Unequal Tee Fittings Manufacturer in India
Sachiya Steel International is a leading Unequal Tee Fittings Manufacturer in India, offering pipe fittings that connect pipes of different diameters within industrial piping systems. Established in 2005, we have 20+ years of experience in supplying unequal tees in carbon steel, stainless steel, alloy steel, duplex steel, and nickel alloys. Our product range includes seamless and welded fittings, with dimensions selected to match the main pipe and branch outlet requirements.
We supply unequal tee fittings in sizes based on specified run and branch diameters, with wall thicknesses and schedules to suit project drawings. Material options include SS 304/304L, SS 316/316L, ASTM A234 WPB, WP11, WP22, and duplex grades S31803/S32205, subject to availability. As an ISO-certified, TÜV-approved, and MSME-registered company, we can manufacture and export up to 100 tonnes per month, serving customers across 85+ countries with inspection and material documentation available as required.

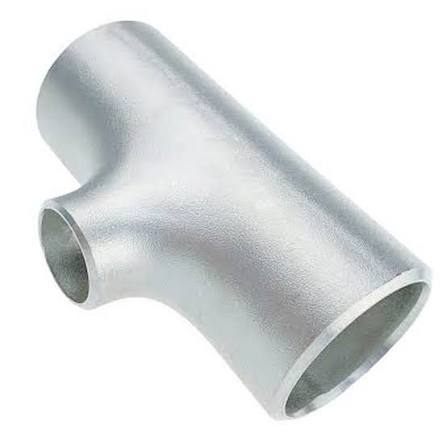

What Are Unequal Tee Fittings?
Unequal tee fittings, also called reducing tees, are butt weld pipe fittings that connect a smaller branch pipe to a larger main pipe at a 90-degree angle. They allow fluid to flow through the main line while directing part of it into a smaller branch. These fittings are commonly used in oil and gas, chemical processing, power plants and other industrial piping systems.
Unequal tee sizes are usually written as 8″ × 8″ × 6″, which means the main run is 8 inches and the branch is 6 inches. These fittings are manufactured to applicable standards, such as ASME B16.9, which covers dimensions and tolerances. The required wall thickness, material grade and pressure capacity depend on the fitting specifications, piping design and operating conditions.

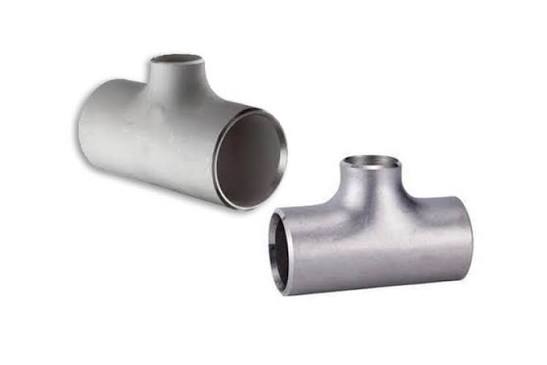

Unequal Tee Fittings
High-quality unequal tee fittings for industrial piping systems, designed to connect pipes of different diameters, for demanding oil and gas, petrochemical, chemical, power generation, marine and engineering applications in various materials, sizes and grades.
Unequal Tee Fittings Types We Supply
As an experienced unequal tee fittings manufacturer, we offer different types to meet piping requirements across industrial applications.
- Standard Unequal Tee: Connects a smaller branch pipe to a larger main pipe for general piping systems.
- Seamless Unequal Tee: Made without a welded seam, suitable for demanding pressure and temperature conditions.
- Welded Unequal Tee: Suitable for larger pipe sizes, with weld inspection as required by project specifications.
- Hot-Formed Unequal Tee: Produced using heat and forming processes to achieve the required shape, including for larger sizes and thicker walls.
- Cold-Formed Unequal Tee: Formed without heating the material, offering good dimensional control for suitable sizes and wall thicknesses.
- Heavy-Wall Unequal Tee: Available in wall thicknesses such as Schedule 80 and XXS for applications requiring thicker walls.
- Stainless Steel Unequal Tee: Available in ASTM A403 grades and WP-S, WP-W or WP-WX manufacturing types, depending on the required specification.
- Alloy and Low-Temperature Unequal Tee: Grades such as WP11, WP22, WP91 and WPL6 suit high-temperature or low-temperature service, depending on the material.
- Duplex and Super Duplex Unequal Tee: Used in applications that require high strength and resistance to corrosion, including offshore and seawater systems.
- Barred Unequal Tee: Includes bars across the branch to help prevent pipeline inspection pigs from entering the branch line.
- Custom Unequal Tee: Manufactured to specified run sizes, branch sizes, material grades and dimensions based on project requirements.
Why Choose Unequal Tee Fittings?
Unequal tee fittings connect a smaller branch line directly to a larger main pipeline. They are useful in industrial systems where the main line carries fluid to several pumps, vessels, heat exchangers or other equipment. By providing the required branch size in a single fitting, they simplify pipeline connections and reduce the need for additional components.
Compared with an equal tee combined with a reducer, an unequal tee can reduce the number of fittings, welds and installation space required. Its factory-made design also helps achieve a consistent fit during installation. Depending on the piping design, it can offer a practical alternative to fabricated branch connections.
Branch strength, pressure and flow requirements are important when selecting an unequal tee fitting. The correct material grade, wall thickness and dimensions help the fitting meet the demands of the piping system. The need for additional reinforcement depends on the design code and application. These fittings are widely used in oil and gas, chemical processing, power generation and other industries where pipelines need branch connections of different sizes.
Types of Tees Fittings
Explore our range of industrial tee fittings, including equal tees, straight tees, reducing tees, threaded tees, unequal tees, barred tees and lateral tees for diverse piping applications.
Equal Tee Fittings
→
Straight Tee Fittings
→
Reducing Tee Fittings
→
Threaded Tee Fittings
→
Unequal Tee Fittings
→
Barred Tee Fittings
→
Lateral Tee Fittings
→Get Certified Unequal Tee Fittings at Competitive Factory Prices
Unequal Tee Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Unequal Tee Fittings (Reducing Tee) |
| Types | Seamless, welded, hot formed, cold formed, heavy wall, barred |
| Run Size Range | 1/2" to 24" NB |
| Branch Size | Smaller than the run, per ASME B16.9 combinations and made-to-order pairs |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, MSS SP-43, MSS SP-75 |
| Material Standards | ASTM A234, A403, A420, A815, B366 |
| End Type | Bevel end per ASME B16.25 |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, stress relieving, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Run size × branch size, schedule, grade and standard (for example: Unequal Tee 10" × 6", Sch 40, A234 WPB, ASME B16.9) |
| Custom Work | Special size combinations, walls, grades and barred branches |
Unequal Tee Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
Unequal Tee Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Unequal Tee Fittings Size Chart
| Run × Branch | Branch as % of Run | Where This Unequal Tee Goes |
|---|---|---|
| 2" × 1" | 50% | Dosing and sample take-offs |
| 3" × 2" | 67% | Utility and cooling water branches |
| 4" × 3" | 75% | Fire water and fuel branches |
| 4" × 2" | 50% | Instrument and drain branches |
| 6" × 4" | 67% | Pump suction and discharge feeds |
| 6" × 3" | 50% | Heat exchanger feeds |
| 8" × 6" | 75% | Process header take-offs |
| 8" × 4" | 50% | Vessel and tank feeds |
| 10" × 6" | 60% | Plant header branches |
| 12" × 8" | 67% | Transfer line and cooling circuit branches |
| 12" × 6" | 50% | Pump and exchanger feeds |
| 14" × 10" | 71% | Refinery header take-offs |
| 16" × 12" | 75% | Plant main branches |
| 20" × 12" | 60% | Water transmission take-offs |
| 24" × 16" | 67% | Large header and pipeline branches |
Unequal Tee Fittings Dimension Chart (ASME B16.9)
Dimension C is the centre-to-end of the run, and it depends only on the run size. Dimension M is the centre-to-end of the branch, and it changes with each run and branch pair. All dimensions are in mm.
| Run × Branch | Run OD | Branch OD | Run (C) | Branch (M) |
|---|---|---|---|---|
| 4" × 3" | 114.3 | 88.9 | 105 | 98 |
| 4" × 2 1/2" | 114.3 | 73.0 | 105 | 95 |
| 4" × 2" | 114.3 | 60.3 | 105 | 89 |
| 5" × 4" | 141.3 | 114.3 | 124 | 117 |
| 5" × 3" | 141.3 | 88.9 | 124 | 111 |
| 6" × 5" | 168.3 | 141.3 | 143 | 137 |
| 6" × 4" | 168.3 | 114.3 | 143 | 130 |
| 6" × 3" | 168.3 | 88.9 | 143 | 124 |
| 8" × 6" | 219.1 | 168.3 | 178 | 168 |
| 8" × 5" | 219.1 | 141.3 | 178 | 162 |
| 8" × 4" | 219.1 | 114.3 | 178 | 156 |
| 10" × 8" | 273.1 | 219.1 | 216 | 203 |
| 10" × 6" | 273.1 | 168.3 | 216 | 194 |
| 10" × 4" | 273.1 | 114.3 | 216 | 184 |
| 12" × 10" | 323.9 | 273.1 | 254 | 241 |
| 12" × 8" | 323.9 | 219.1 | 254 | 229 |
| 12" × 6" | 323.9 | 168.3 | 254 | 219 |
| 14" × 12" | 355.6 | 323.9 | 279 | 270 |
| 14" × 10" | 355.6 | 273.1 | 279 | 257 |
| 14" × 8" | 355.6 | 219.1 | 279 | 248 |
| 20" × 18" | 508.0 | 457.0 | 381 | 368 |
For any pair not shown, we cut the tee to the ASME B16.9 table for that run and branch combination. Wall thickness follows the schedule of the connecting pipe.
Unequal Tee Fittings Grades We Supply
Different piping systems need materials that can handle specific temperatures, pressures and fluid conditions. Our range of unequal tee fittings includes carbon steel ASTM A234 WPB for oil, gas, steam and water lines, ASTM A420 WPL6 for low-temperature service, and high-yield grades under MSS SP-75 for high-strength pipeline applications. For boilers, refineries and power plants, we supply alloy steel ASTM A234 WP11, WP22 and WP91 for high-temperature service.
For corrosive fluids and process lines, we offer stainless steel ASTM A403 WP304, WP304L, WP316, WP316L, WP321 and WP347. Duplex ASTM A815 UNS S31803 and S32205, along with super duplex UNS S32750, suit demanding seawater and chloride-rich environments. We also supply Inconel, Monel and Hastelloy unequal tee fittings for specialized applications. As an experienced unequal tee fittings supplier, we provide material options based on project specifications and operating conditions.
Unequal Tee Fittings Standards and Certifications
We manufacture unequal tee fittings according to applicable industry standards to meet different piping requirements. As an unequal tee fittings supplier in India, we offer butt weld tees to ASME B16.9, stainless steel tees to MSS SP-43 and high-yield pipeline fittings to MSS SP-75. Our fittings follow the relevant material standards, including ASTM A234 for carbon and alloy steel, ASTM A403 for stainless steel, ASTM A420 for low-temperature steel, ASTM A815 for duplex steel and ASTM B366 for nickel alloys. Weld end preparation follows ASME B16.25 where specified.
Our quality process includes material traceability, dimensional checks and inspection reports as required by the project. We can provide EN 10204 3.1 material test certificates, chemical and mechanical test reports, and positive material identification (PMI) reports. EN 10204 3.2 certification, third-party inspection and applicable quality or pressure equipment compliance documentation can also be arranged according to project requirements.
Unequal Tee Fittings Applications
- Oil and Gas Pipelines: Unequal tee fittings take smaller branches off large gathering headers, metering skids and delivery stations.
- Refineries and Petrochemical Plants: Alloy steel unequal tees feed smaller process lines off main hydrocarbon headers.
- Power Plants: WP22 and WP91 unequal tees carry steam and boiler feed branches from large headers at high temperature and pressure.
- Chemical Processing: Stainless steel 316L and duplex unequal tees feed acid, alkali and solvent lines into smaller reactors and dosing units.
- Pharmaceutical and Food Plants: Polished stainless steel unequal tees give smooth, easy-to-clean branches to smaller process equipment.
- Water Treatment and Desalination: Super duplex and 316L unequal tees feed treatment units off large brine and seawater mains.
- Pump Stations and Manifolds: An unequal tee matches each pump or exchanger branch to its own size, and many projects source them from an Unequal Tee Fittings Supplier in India like us.
- Fire Protection and HVAC: Carbon steel unequal tees step down from large risers and chilled water mains to sprinkler and coil branches.
- Shipbuilding and Offshore: Compact unequal tees feed seawater cooling and fire fighting lines from large vessel mains.
Unequal Tee Fittings Manufacturing Capacity and Export Capability
Our manufacturing facility in Vasai, near Mumbai, has the capacity to produce up to 100 tonnes of unequal tee fittings per month. We manufacture butt weld unequal tees in run sizes from 1/2" to 24" NB in carbon steel, stainless steel, alloy steel, duplex and other grades. With forming, heat treatment and machining handled at one facility, we maintain better control over production and can accommodate different sizes and material grades in the same order.
We also have an export capacity of up to 100 tonnes per month and handle shipments ranging from sample quantities to full container loads. As an unequal tee fittings supplier in India, we arrange shipments through Nhava Sheva (JNPT) and Mundra ports and manage export documentation in-house. Our products reach customers in 85+ countries, with a focus on proper packaging, smooth customs clearance and timely delivery.
Why Choose Us as Your Unequal Tee Fittings Manufacturer in India?
Choosing the right unequal tee fittings manufacturer in India means finding a supplier that understands your pipe sizes, material grades and project requirements. With over 20 years of experience in industrial steel products, we manufacture unequal tee fittings for oil and gas, chemical processing, power generation and other industries. Our in-house production helps us maintain control over manufacturing, quality and delivery schedules.
We offer unequal tee fittings in carbon steel, stainless steel, alloy steel, low-temperature steel, duplex, super duplex and nickel alloys. Our range covers seamless, welded, heavy-wall and barred types manufactured to applicable standards such as ASME B16.9, MSS SP-43 and MSS SP-75. We also supply elbows, reducers, caps, flanges and other pipe fittings to support a wider range of piping requirements.
With a monthly production and export capacity of up to 100 tonnes, we supply products to customers in 85+ countries. Our ISO 9001:2015 and ISO 14001:2015 certifications, along with TÜV approval and MSME registration, support our commitment to quality and responsible manufacturing. We provide material test certificates and inspection reports as required, with a focus on competitive pricing, clear communication and delivery within agreed schedules.
Countries We Export To
We ship unequal tee fittings to 85+ countries, and as one of the Unequal Tee Fittings Suppliers that serve refineries, power stations, water plants and shipyards, we cover every major region.
- North America: USA, Canada and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam and Australia
- Africa: South Africa, Nigeria, Egypt and Kenya
- South America: Brazil, Chile and Peru
Each shipment carries an EN 10204 3.1 certificate, and we arrange 3.2 or third-party inspection on request. We pack for sea freight and prepare every export document ourselves, so cargo clears customs on schedule.
