Caps Fittings Manufacturer in India
Caps Fittings Manufacturer in India
Sachiya Steel International is a trusted Caps Fittings Manufacturer in India, established in 2005 and headquartered in Mumbai, India. With 20+ years of industry experience, we have built strong business relationships with customers across India and 85+ countries worldwide. We work with industrial buyers, distributors, and project suppliers, focusing on reliable service, competitive pricing, and long-term business relationships.
We follow quality management and safety practices supported by ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications, along with applicable TÜV certifications. We supply industrial steel products according to relevant ASTM, ASME, ANSI, DIN, and ISO standards, with inspection reports and material documentation available as required. Our focus on quality, material traceability, clear communication, and timely delivery helps us serve customers across various industries and international markets.
What Are Caps Fittings?
Caps fittings are pipe fittings that close the end of a pipe. They have a domed or rounded shape on one side and a bevelled, threaded or socket end on the other, and they seal the line so that fluid or gas cannot escape from the end. A cap is also called a pipe end cap or an end cap.
Butt weld caps follow ASME B16.9 and are welded onto the end of the pipe, which gives a permanent closure. Forged threaded caps follow ASME B16.11 and screw onto a threaded pipe end, which allows the cap to be removed later. The required wall thickness, material grade and pressure capacity depend on the fitting specifications, piping design and operating conditions.

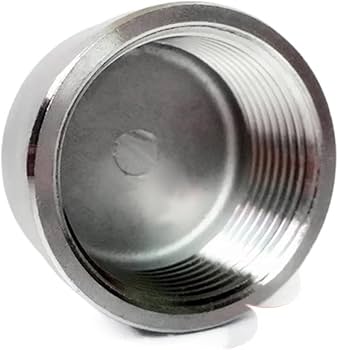

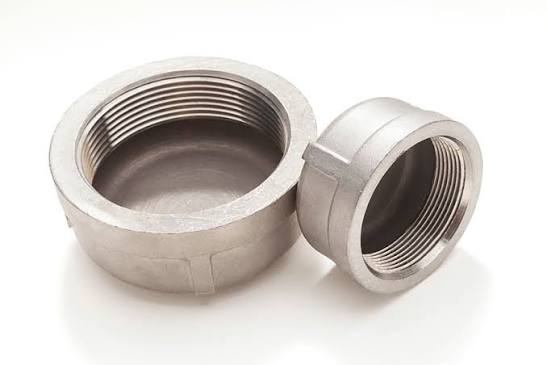

Cap Fittings
High-quality pipe cap fittings are available in stainless steel, carbon steel, alloy steel, duplex and nickel alloys, in various sizes, thicknesses and grades. Options include SS 304, 316, ASTM A234 WPB, Duplex 2205 and Inconel 625, designed for closing pipe ends and supporting reliable performance in oil and gas, chemical and industrial piping systems.
Caps Fittings Types We Supply
As an experienced Caps Fittings Manufacturer in India, we supply different types of pipe caps to meet industrial piping requirements across various sectors.
- Butt Weld Pipe Caps: Used to close pipe ends and create a secure, permanent connection in piping systems.
- Seamless Pipe Caps: Suitable for applications that require a cap without a welded seam.
- Welded Pipe Caps: Used in piping systems where welded caps meet the project requirements.
- Stainless Steel Pipe Caps: Suitable for applications requiring corrosion resistance.
- Carbon Steel Pipe Caps: Commonly used in oil and gas, power plants, and industrial pipelines.
- Alloy Steel Pipe Caps: Used in applications involving high temperatures and demanding operating conditions.
- Duplex and Super Duplex Pipe Caps: Suitable for applications requiring high strength and corrosion resistance.
- Nickel Alloy Pipe Caps: Used in demanding chemical processing, marine, and industrial environments.
We supply pipe caps in different sizes, wall thicknesses, and material grades according to applicable standards and customer specifications.
Why Choose Caps Fittings?
Pipe caps play an important role in closing open pipe ends, preventing leaks, and protecting piping systems from dirt, moisture, and other unwanted materials. Choosing the right pipe cap helps maintain system safety and supports reliable operation across different industrial applications. The material, size, thickness, and connection type should match the operating conditions and piping requirements.
- Secure Pipe Closure: Closes open pipe ends to prevent unwanted entry and leakage.
- Corrosion Resistance: Stainless steel, duplex, and nickel alloy caps suit applications that require corrosion resistance.
- High-Temperature Performance: Suitable alloy grades can meet specific high-temperature service requirements.
- Different Material Options: Available in carbon steel, stainless steel, alloy steel, duplex, and other grades.
- Multiple Sizes and Thicknesses: Helps meet different piping layouts and project specifications.
- Industrial Applications: Used in oil and gas, chemical processing, petrochemical, power generation, marine, and water treatment systems.
We supply pipe caps in different material grades and specifications to meet industrial requirements. Since 2005, we have served customers across 85+ countries, focusing on product quality, material traceability, competitive pricing, and reliable delivery. We also provide inspection and material documentation as required by the order.
Types of Caps Fittings
Explore our range of industrial cap fittings, including pipe end caps, butt weld caps, threaded caps, socket weld caps, stainless steel caps and carbon steel caps for diverse piping applications.
Pipe End Cap Fittings
→
Butt Weld Cap Fittings
→
Threaded Cap Fittings
→
Socket Weld Cap Fittings
→
Stainless Steel Cap Fittings
→
Carbon Steel Cap Fittings
→Get Certified Caps Fittings at Competitive Factory Prices
Caps Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Caps Fittings (Pipe End Caps) |
| Types | Butt weld cap, forged threaded cap, seamless, welded, heavy wall |
| Butt Weld Size Range | 1/2" to 24" NB |
| Threaded Size Range | 1/8" to 4" NB |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Threaded Pressure Class | 3000#, 6000# |
| Head Shape | 2:1 ellipsoidal (butt weld caps) |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, ASME B16.11, MSS SP-43 |
| Material Standards | ASTM A234, A403, A420, A815, A105, A182, B366 |
| End Type | Bevel end per ASME B16.25 (butt weld), NPT or BSP threads (threaded) |
| Construction | Seamless, welded and forged |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, stress relieving, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Size, type, schedule or class, grade and standard (for example: Butt Weld Cap 6", Sch 40, A234 WPB, ASME B16.9) |
| Custom Work | Special sizes, walls, grades and heads |
Caps Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A105 | 0.35 | 0.60–1.05 | 0.10–0.35 | 0.035 | 0.040 | 0.30 | 0.40 | 0.12 |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A182 F304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A182 F316L | 0.030 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
A105 also carries up to 0.40% copper and 0.05% vanadium. Duplex S31803 carries 0.08–0.20% nitrogen.
Caps Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A105 | 485 min | 250 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A182 F304 / F316 | 515 min | 205 min | 30 min |
| A182 F304L / F316L | 485 min | 170 min | 30 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Caps Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where This Cap Size Goes |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument and sample line ends |
| 25 | 1" | 33.4 | Chemical dosing and utility air ends |
| 50 | 2" | 60.3 | Cooling water and drain line ends |
| 80 | 3" | 88.9 | Fire water and fuel line ends |
| 100 | 4" | 114.3 | Steam and process header ends |
| 150 | 6" | 168.3 | Pump manifold and header ends |
| 200 | 8" | 219.1 | Main process header ends |
| 300 | 12" | 323.9 | Transfer line and cooling circuit ends |
| 400 | 16" | 406.4 | Refinery and plant main ends |
| 600 | 24" | 609.6 | Pipeline and large header ends |
Caps Fittings Dimension Chart (ASME B16.9 and B16.11)
Butt weld caps (ASME B16.9). Dimension E is the overall length of the cap for standard and lighter walls, and E1 applies to heavier walls. All dimensions are in mm.
| NPS | Pipe OD | Length (E) | Length for Heavier Walls (E1) |
|---|---|---|---|
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 25 | 25 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 38 | 38 |
| 1 1/2" | 48.3 | 38 | 38 |
| 2" | 60.3 | 38 | 44 |
| 2 1/2" | 73.0 | 38 | 51 |
| 3" | 88.9 | 51 | 64 |
| 3 1/2" | 101.6 | 64 | 76 |
| 4" | 114.3 | 64 | 76 |
| 5" | 141.3 | 76 | 89 |
| 6" | 168.3 | 89 | 102 |
| 8" | 219.1 | 102 | 127 |
| 10" | 273.1 | 127 | 152 |
| 12" | 323.9 | 152 | 178 |
| 14" | 355.6 | 165 | 191 |
| 16" | 406.4 | 178 | 203 |
| 18" | 457.2 | 203 | 229 |
| 20" | 508.0 | 229 | 254 |
| 24" | 609.6 | 267 | 305 |
Forged threaded caps (ASME B16.11). A is the overall length, D is the outside diameter, G is the minimum wall at the closed end and B is the minimum thread length. All dimensions are in mm.
| NPS | Class 3000 A | Class 3000 D | Class 3000 G | Class 6000 A | Class 6000 D | Class 6000 G | Min Thread Length (B) |
|---|---|---|---|---|---|---|---|
| 1/2" | 32 | 28 | 6.4 | 33 | 38 | 7.9 | 10.9 |
| 3/4" | 37 | 35 | 6.4 | 38 | 44 | 7.9 | 12.7 |
| 1" | 41 | 44 | 9.7 | 43 | 57 | 11.2 | 14.7 |
| 1 1/4" | 44 | 57 | 9.7 | 46 | 64 | 11.2 | 17.0 |
| 1 1/2" | 44 | 64 | 11.2 | 48 | 76 | 12.7 | 17.8 |
| 2" | 48 | 76 | 12.7 | 51 | 92 | 15.7 | 19.0 |
| 2 1/2" | 60 | 92 | 15.7 | 64 | 108 | 19.0 | 23.6 |
| 3" | 65 | 108 | 19.0 | 68 | 127 | 22.4 | 25.9 |
For other sizes, we cut the cap to the ASME table or to your drawing. Wall thickness follows the schedule of the connecting pipe for butt weld caps.
Caps Fittings Grades We Supply
As an experienced caps fittings supplier in India, we offer a wide range of material grades for different industrial piping applications. Our selection includes carbon steel, low-temperature steel, alloy steel, stainless steel, duplex, super duplex, and nickel alloys to meet different operating conditions, temperature requirements, and corrosion resistance needs.
- Carbon Steel: ASTM A234 WPB and ASTM A105 for general industrial piping and forged caps.
- Low-Temperature Steel: ASTM A420 WPL6 for piping systems operating in low-temperature conditions.
- Alloy Steel: ASTM A234 WP11, WP22, and WP91 for high-temperature applications, including power plants and refineries.
- Stainless Steel: ASTM A403 WP304, WP304L, WP316, WP316L, WP321, and WP347 for applications requiring corrosion resistance.
- Forged Stainless Steel: ASTM A182 F304, F316, and other available grades for forged cap requirements.
- Duplex and Super Duplex Steel: ASTM A815 UNS S31803, S32205, and S32750 for demanding environments, including seawater and chloride-rich service.
- Nickel Alloys: Inconel, Monel, and Hastelloy grades for specialised industrial applications.
We supply caps fittings according to customer drawings, project specifications, and applicable standards. Material test certificates and inspection documents are available as required, helping buyers verify material grades and meet project quality requirements.
Caps Fittings Standards and Certifications
We manufacture and supply pipe caps according to applicable industry standards to meet different piping requirements. Our products follow relevant dimensional and material specifications to support quality, safety, and compatibility in industrial piping systems. As an experienced caps fittings supplier in India, we serve buyers across industries with products that meet their project specifications.
Our caps fittings are available to standards such as ASME B16.9 for butt weld fittings, MSS SP-43 for applicable stainless steel fittings, and ASME B16.11 for forged fittings. We also follow ASME B1.20.1 for pipe threads and ASME B16.25 for welding end preparation where required. Material standards include ASTM A234, A403, A420, A815, A105, A182, and B366 for the relevant steel and nickel alloy grades.
We focus on material traceability, dimensional checks, and quality inspection. We can provide EN 10204 3.1 material test certificates, chemical and mechanical test reports, and positive material identification (PMI) reports as required. EN 10204 3.2 certification and third-party inspections can also be arranged according to project needs.
Caps Fittings Applications
- Oil and Gas Pipelines: Caps fittings close the ends of headers, manifolds and pig traps, and seal lines during pressure testing.
- Refineries and Petrochemical Plants: Alloy steel caps close process headers and spare branches in hydrocarbon piping.
- Power Plants: WP22 and WP91 caps seal steam and boiler feed headers at high temperature and pressure.
- Chemical Processing: Stainless steel 316L and duplex caps close transfer and dosing lines handling corrosive fluids.
- Pharmaceutical and Food Plants: Polished stainless steel caps close hygienic lines and spare connections.
- Water Treatment and Desalination: Super duplex and 316L caps close brine and seawater lines and future expansion points.
- Hydrostatic Testing and Commissioning: Crews fit caps to seal a section of pipe during testing, and many projects source them from a caps fittings supplier in India like us.
- Future Expansion Points: Fabricators cap a header end now so that it can be cut open and extended later.
- Fire Protection and HVAC: Carbon steel caps close sprinkler mains, chilled water headers and utility lines.
Caps Fittings Manufacturing Capacity and Export Capability
Our manufacturing facility in Vasai, near Mumbai, has the capacity to produce up to 100 tonnes of caps fittings per month. We manufacture butt weld caps from 1/2" to 24" NB and forged threaded caps from 1/8" to 4" in carbon steel, stainless steel, alloy steel, duplex and other grades. With forming, forging, heat treatment and machining handled at one facility, we maintain better control over production and can accommodate different sizes and material grades in the same order.
We also have an export capacity of up to 100 tonnes per month and handle shipments ranging from sample quantities to full container loads. As a caps fittings supplier in India, we arrange shipments through Nhava Sheva (JNPT) and Mundra ports and manage export documentation in-house. Our products reach customers in 85+ countries, with a focus on proper packaging, smooth customs clearance and timely delivery.
Why Choose Us as Your Caps Fittings Manufacturer in India?
You should choose us because we have been manufacturing and supplying industrial steel products since 2005. With 20+ years of experience, we understand the needs of industrial buyers and focus on product quality, reliable service, competitive pricing, and timely delivery. We serve customers across 85+ countries and handle both standard orders and bulk requirements.
- Wide Material Range: We offer carbon steel, stainless steel, alloy steel, duplex, super duplex, and nickel alloy options.
- Quality Assurance: We follow applicable ASTM, ASME, and other international standards, with material traceability and inspection documents available as required.
- Industry Experience: We support buyers in oil and gas, petrochemical, chemical, power generation, marine, and engineering industries.
- International Supply: We have experience handling export orders and coordinating shipments for customers worldwide.
- Reliable Service: We focus on clear communication, competitive prices, and delivery within agreed schedules.
Our manufacturing and sourcing capabilities help us meet different project specifications and supply requirements. We work to build long-term business relationships by providing dependable products and responsive customer support.
Countries We Export To
We ship caps fittings to 85+ countries, and as one of the caps fittings suppliers that serve refineries, power stations, water plants and shipyards, we cover every major region.
- North America: USA, Canada and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam and Australia
- Africa: South Africa, Nigeria, Egypt and Kenya
- South America: Brazil, Chile and Peru
Each shipment carries an EN 10204 3.1 certificate, and we arrange 3.2 or third-party inspection on request. We pack for sea freight and prepare every export document ourselves, so cargo clears customs on schedule.
