Sachiya Steel International is a trusted Short Stub End Fittings Manufacturer in India, established in 2005 and headquartered in Mumbai, with 20+ years of experience in the pipe fittings industry. We manufacture, supply, and export short stub end fittings for industrial piping systems used in oil and gas, petrochemical, chemical processing, power generation, marine, and engineering applications. Our products support standard requirements, bulk orders, and customised project needs for customers across 85+ countries.
We offer short stub end fittings in various sizes, dimensions, and material grades, including carbon steel, stainless steel, alloy steel, duplex, super duplex, and nickel alloys. Products can be supplied according to applicable ASTM, ASME, and other relevant industry standards, with material test certificates and inspection reports available as required. Supported by ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and applicable TÜV certifications, we focus on product quality, competitive pricing, and dependable global delivery. Our wide material selection helps buyers find suitable fittings for different piping configurations and operating conditions.
What Are Short Stub End Fittings?
Short stub end fittings are short pipe fittings used to connect pipes with lap joint flanges in industrial piping systems. They are welded to the pipe and work with a loose backing flange, which can rotate to simplify bolt-hole alignment during installation. Their compact length makes them suitable for piping arrangements where space is limited.
These fittings are commonly used in oil and gas, chemical processing, petrochemical, and marine industries. They are available in different material grades, sizes, and specifications to suit various piping requirements.

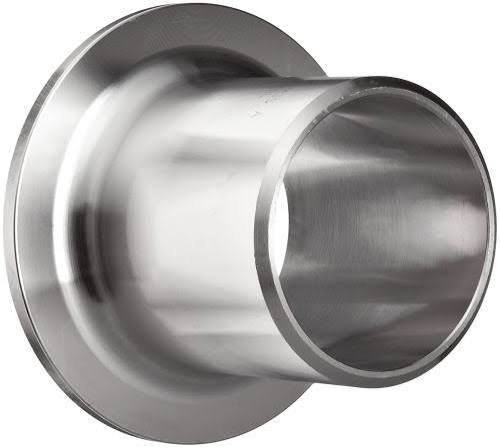

Short Stub End Fittings
Short Stub End Fittings are available in sizes from 1/2" to 48" and grades such as ASTM A234 WPB, WP5, WP9, WP11, WP22, and WP91. Designed for use with lap joint flanges, these fittings support reliable piping connections in oil and gas, petrochemical, refinery, and power generation industries.
Short Stub End Fittings Types We Supply
As a trusted short stub end fittings manufacturer, we offer different types of short stub ends to meet the needs of industrial piping systems. Our products are available in different materials, sizes, and specifications for applications in oil and gas, chemical plants, petrochemical facilities, and other industries. Buyers can select suitable fittings based on their pipe dimensions, flange type, and project requirements.
- Type A Short Stub Ends: Used with lap joint flanges in compatible piping systems.
- Type B Short Stub Ends: Suitable for specific flange connections based on design requirements.
- Type C Short Stub Ends: Supplied for applications that require a particular connection design.
- Carbon Steel Short Stub Ends: Used in general industrial piping applications.
- Stainless Steel Short Stub Ends: Suitable for systems that need corrosion resistance.
- Alloy Steel Short Stub Ends: Used where specific strength and temperature requirements apply.
- Duplex and Nickel Alloy Short Stub Ends: Suitable for demanding industrial environments.
We supply short stub end fittings in different grades and dimensions according to applicable standards and customer specifications.
Why Choose Short Stub End Fittings?
Short stub end fittings are a practical option for piping systems that need compact connections with lap joint flanges. Their design makes flange alignment easier during installation and supports convenient dismantling when maintenance or repairs are required. They are commonly used in industrial plants where space, accessibility, and proper pipe connections matter.
- Space-Saving Design: Their shorter length suits piping layouts with limited installation space.
- Easy Flange Alignment: The loose backing flange rotates to help align bolt holes during assembly.
- Convenient Maintenance: The connection allows easier removal and reassembly when required.
- Material Options: Available in carbon steel, stainless steel, alloy steel, duplex, and other materials, depending on requirements.
- Multiple Sizes: Different dimensions help match existing pipes and project specifications.
- Industrial Applications: Used in oil and gas, chemical processing, petrochemical, marine, and power generation systems.
Choosing the right short stub end helps ensure a compatible flange connection and reliable performance under the intended operating conditions.
Types of Stub Ends Fittings
Explore our range of industrial stub end fittings, including short stub ends, long stub ends, Type A, Type B and Type C stub ends, lap joint stub ends and MSS type stub ends for diverse piping applications.

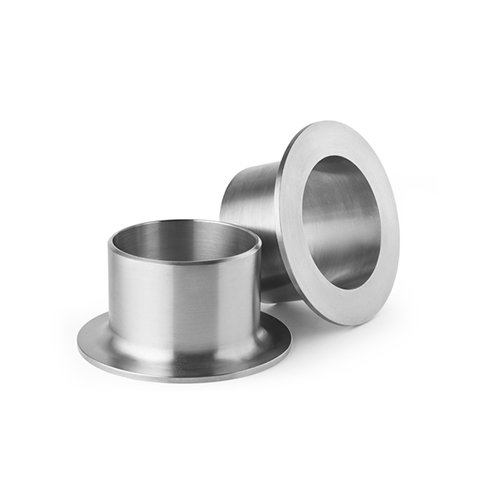

Short Stub End Fittings
→
Long Stub End Fittings
→
Type A Stub End Fittings
→
Type B Stub End Fittings
→
Type C Stub End Fittings
→
Lap Joint Stub End Fittings
→
MSS Type Stub End Fittings
→Get Certified Short Stub End Fittings at Competitive Factory Prices
Short Stub End Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Short Stub End Fittings (Short Pattern Lap Joint Stub Ends) |
| Types | Short pattern, Type A, Type B, seamless, welded, heavy wall |
| Size Range | 1/2" to 24" NB |
| Pattern | Short pattern (MSS SP-43) |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | MSS SP-43, ASME B16.9 |
| Mating Flange | Lap joint flange (backing flange) to ASME B16.5 |
| Material Standards | ASTM A403, A234, A420, A815, B366 |
| End Type | Bevel end per ASME B16.25 |
| Construction | Seamless and welded |
| Surface Finish | Pickled and passivated, sand blasted, polished, black, oil coated |
| Heat Treatment | Normalising, stress relieving, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Size, pattern, type, schedule, grade and standard (for example: Short Stub End 4", Sch 10S, A403 WP316L, MSS SP-43) |
| Custom Work | Special lengths, lap diameters, walls and grades |
Short Stub End Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
Short Stub End Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Short Stub End Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where This Short Stub End Size Goes |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument and sample connections on skids |
| 25 | 1" | 33.4 | Dosing and utility connections in tight racks |
| 50 | 2" | 60.3 | Pump and valve connections on compact skids |
| 80 | 3" | 88.9 | Fire water and fuel connections in plant rooms |
| 100 | 4" | 114.3 | Heat exchanger and pump nozzle connections |
| 150 | 6" | 168.3 | Process spool connections with limited room |
| 200 | 8" | 219.1 | Header and vessel nozzle connections |
| 300 | 12" | 323.9 | Cooling circuit and transfer line connections |
| 400 | 16" | 406.4 | Large spool connections in crowded racks |
| 600 | 24" | 609.6 | Large header connections with limited length |
Short Stub End Fittings Dimension Chart (MSS SP-43)
F is the length of the stub end from the face of the lap to the bevelled end. G is the diameter of the lap, and R is the radius of the fillet between the barrel and the lap. The last column shows how much shorter the short pattern is than the long pattern. All dimensions are in mm.
| NPS | Barrel OD (Max / Min) | Lap Diameter (G) | Fillet Radius (R) | Short Pattern Length (F) | Long Pattern Length (F) | Length Saved |
|---|---|---|---|---|---|---|
| 1/2" | 22.8 / 20.5 | 35 | 3 | 51 | 76 | 25 |
| 3/4" | 28.1 / 25.9 | 43 | 3 | 51 | 76 | 25 |
| 1" | 35.0 / 32.6 | 51 | 3 | 51 | 102 | 51 |
| 1 1/4" | 43.6 / 41.4 | 64 | 5 | 51 | 102 | 51 |
| 1 1/2" | 49.9 / 47.5 | 73 | 6 | 51 | 102 | 51 |
| 2" | 62.4 / 59.5 | 92 | 8 | 64 | 152 | 88 |
| 2 1/2" | 75.3 / 72.2 | 105 | 8 | 64 | 152 | 88 |
| 3" | 91.3 / 88.1 | 127 | 10 | 64 | 152 | 88 |
| 3 1/2" | 104.0 / 100.8 | 140 | 10 | 76 | 152 | 76 |
| 4" | 116.7 / 113.5 | 157 | 11 | 76 | 152 | 76 |
| 5" | 144.3 / 140.5 | 186 | 11 | 76 | 203 | 127 |
| 6" | 171.3 / 167.5 | 216 | 13 | 89 | 203 | 114 |
| 8" | 222.1 / 218.3 | 270 | 13 | 102 | 203 | 101 |
| 10" | 277.2 / 272.3 | 324 | 13 | 127 | 254 | 127 |
| 12" | 328.0 / 323.1 | 381 | 13 | 152 | 254 | 102 |
| 14" | 359.9 / 354.8 | 413 | 13 | 152 | 305 | 153 |
| 16" | 411.0 / 405.6 | 470 | 13 | 152 | 305 | 153 |
| 18" | 462.0 / 456.0 | 533 | 13 | 152 | 305 | 153 |
| 20" | 514.0 / 507.0 | 584 | 13 | 152 | 305 | 153 |
| 24" | 616.0 / 609.0 | 692 | 13 | 152 | 305 | 153 |
Wall thickness follows the schedule of the connecting pipe. For special lengths and for lap diameters that suit particular backing flanges, we cut the stub end to your drawing.
Short Stub End Fittings Grades We Supply
Different piping applications require specific materials to handle operating temperatures, pressure levels, and exposure to corrosive substances. As a reliable short stub end fittings supplier, we offer a range of material grades for industrial piping systems, helping buyers choose suitable options for their project specifications and service conditions.
- Carbon Steel: ASTM A234 WPB, ASTM A420 WPL6
- Alloy Steel: ASTM A234 WP11, WP22, WP91
- Stainless Steel: ASTM A403 WP304, WP304L, WP316, WP316L, WP321, WP347
- Duplex Stainless Steel: ASTM A815 UNS S31803, UNS S32205
- Super Duplex Stainless Steel: UNS S32750, UNS S32760
- Nickel Alloys: Inconel 625, Monel 400, Incoloy 825, Hastelloy C276
Carbon steel grades are commonly used in general industrial piping, while stainless steel and duplex options suit applications requiring corrosion resistance. Alloy steel grades support specific high-temperature services, and nickel alloys are selected for specialised operating environments. We supply short stub end fittings in different sizes and dimensions, with material availability, testing, and documentation based on applicable standards and customer requirements.
Short Stub End Fittings Standards and Certifications
Choosing fittings that meet recognised industry standards helps ensure proper dimensions, material quality, and compatibility with piping systems. As a short stub end fittings supplier in India, we provide products according to applicable ASTM, ASME, and MSS specifications based on the required design and material grade. Our supply range covers relevant material standards, including ASTM A234 for carbon and alloy steel butt weld fittings, ASTM A403 for stainless steel fittings, and ASTM A815 for duplex and super duplex fittings. Dimensional requirements and flange compatibility are checked against the applicable project specifications.
To support quality verification, we can provide material test certificates, chemical composition reports, mechanical test results, and dimensional inspection records as required. EN 10204 3.1 documentation, positive material identification (PMI), impact testing, and third-party inspection can also be arranged according to the order requirements. Our quality management systems are supported by ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and applicable TÜV certifications. This approach helps buyers verify material details and confirm that supplied short stub end fittings meet their specified requirements.
Short Stub End Fittings Applications
- Skid-Mounted Equipment: Short stub end fittings let skid builders fit lap joint connections between pumps, filters and vessels with limited room.
- Pharmaceutical and Food Plants: Compact stainless steel stub ends make easy-to-open connections for cleaning and inspection.
- Chemical Processing: Short stub ends in 316L or alloy steel pair with carbon steel backing flanges on acid and solvent lines.
- Plant Rooms and Utility Areas: Contractors use short stub ends where pipes run close to walls, columns and other services.
- Pump and Heat Exchanger Connections: Rotating backing flanges and short stub ends make nozzle connections easier to align in tight spots.
- Offshore and Marine Piping: Duplex and 316L short stub ends serve compact seawater, cooling and fire fighting lines.
- Water Treatment and Desalination: Short stub ends in corrosion-resistant grades connect brine and treated water lines in compact modules.
- Low-Pressure Process Lines: Short pattern stub ends serve moderate-pressure lines that need frequent dismantling, and many projects source them from a short stub end fittings supplier in India like us.
- Cost-Sensitive Alloy Piping: Designers use shorter stub ends in expensive alloys to reduce the metal in each connection.
Why Choose Us as Your Short Stub End Fittings Manufacturer in India?
With over 20 years of experience since 2005, we understand the importance of supplying short stub end fittings that match your pipe dimensions, wall thickness, flange connections, and project specifications. We serve industries such as oil and gas, chemical processing, pharmaceuticals, and power generation, offering products for standard installations, bulk orders, and customised requirements. Our focus is on providing suitable fittings that meet the practical needs of industrial piping systems.
We offer short stub end fittings in carbon steel, stainless steel, alloy steel, low-temperature steel, duplex, super duplex, and nickel alloys. Our product range includes Type A and Type B designs, along with seamless, welded, and heavy-wall options, subject to applicable specifications and availability. Products can be supplied according to relevant standards, including ASME B16.9 and MSS SP-43, where applicable. We also supply other pipe fittings and flanges to support different project requirements.
With a monthly production and export capacity of up to 100 tonnes, we serve customers in 85+ countries. Our certifications include ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and applicable TÜV approvals. Material test certificates and inspection reports are available as required. We prioritise consistent quality, competitive pricing, clear communication, and reliable delivery schedules to support your purchasing needs.
Countries We Export To
We export short stub end fittings to 85+ countries, serving process plants, power stations, shipyards, and water treatment projects worldwide.
- North America: USA, Canada, Mexico
- Europe: UK, Germany, France, Italy, Netherlands, Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, Australia
- Africa: South Africa, Nigeria, Egypt, Kenya
- South America: Brazil, Chile, Peru
We provide EN 10204 3.1 material test certificates as specified and arrange 3.2 certification or third-party inspections on request. Our export services include secure sea-freight packaging and shipping documentation to support smooth international delivery.
