Sachiya Steel International is a leading Long Radius Elbow Fittings Manufacturer in India, producing pipe fittings for industrial systems that need smooth changes in flow direction. Established in 2005 in Mumbai, we manufacture and export long radius elbows in carbon steel, stainless steel, alloy steel and duplex steel. Our range covers different sizes, schedules and material grades to meet project requirements.
With over 20 years of experience, we supply customers in 85+ countries across oil and gas, petrochemical, power generation and chemical industries. Our products follow applicable ASTM and ASME standards, with material test certificates and inspection reports available as required. Supported by ISO 9001:2015 and ISO 14001:2015 certifications and TÜV approval, we handle standard orders, bulk quantities and custom requirements with a focus on quality and reliable delivery.
What Are Long Radius Elbow Fittings?
Long radius elbow fittings are pipe fittings that change the direction of flow gradually, with a centre-line radius equal to 1.5 times the nominal pipe size. They are commonly available in 45° and 90° angles, helping pipelines turn while reducing sudden changes in flow direction.
These fittings are widely used in oil and gas pipelines, chemical plants, power stations and water systems where smooth flow is important. Their curved design can help reduce pressure loss and turbulence compared with sharper turns in suitable piping systems. Available in different sizes, wall thicknesses and materials, long radius elbows can meet a wide range of industrial piping requirements.

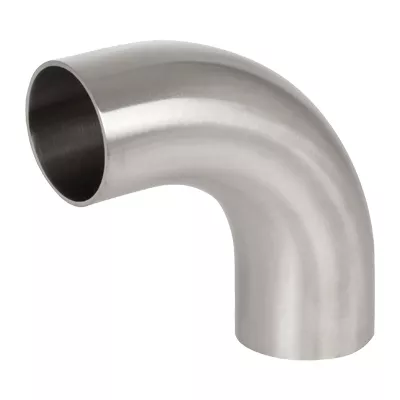

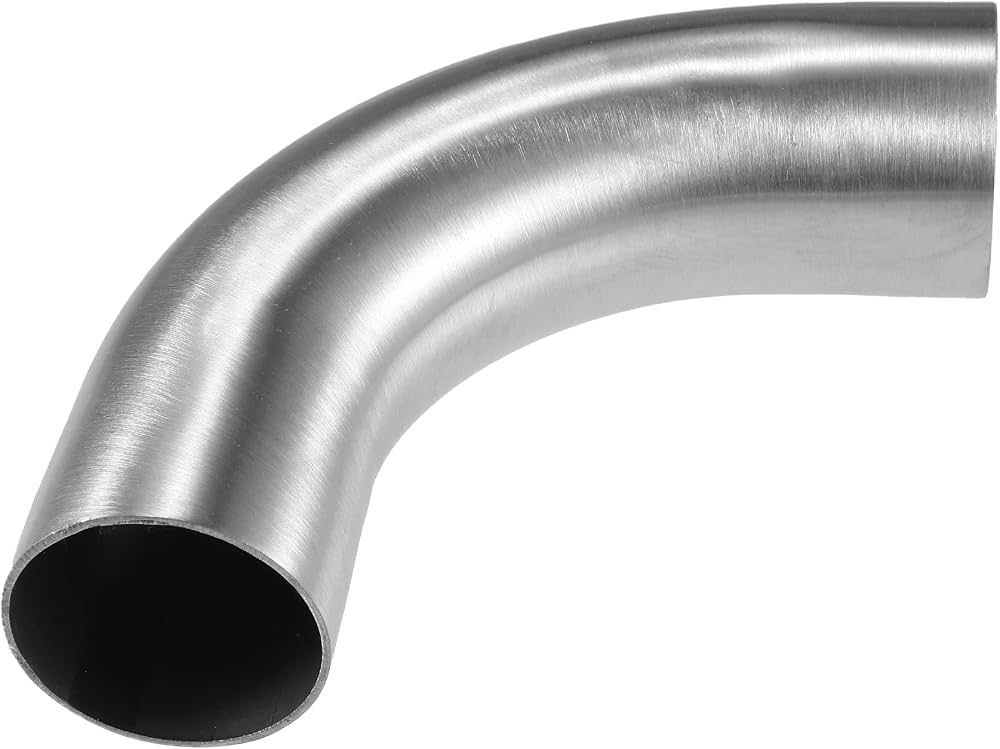

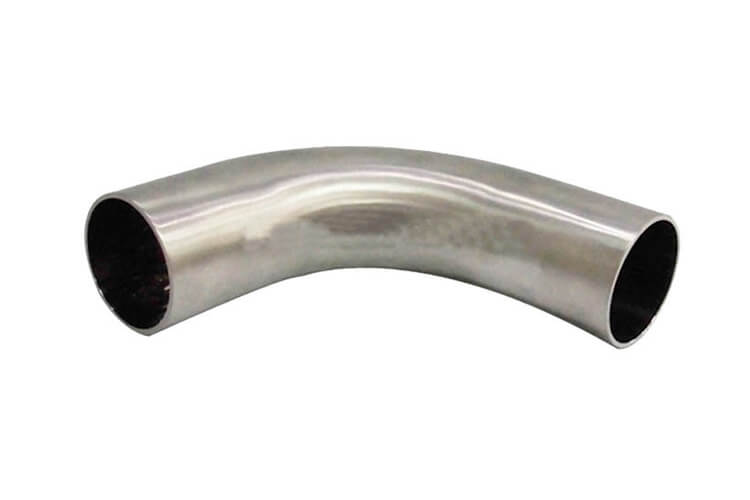

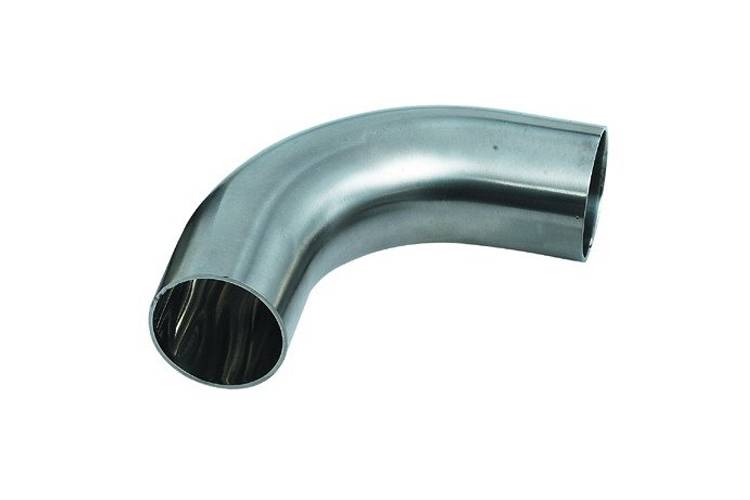

Long Radius Elbow Fittings
High-quality long radius elbow fittings designed for smooth fluid flow and reduced pressure loss in industrial piping systems, serving oil and gas, petrochemical, chemical, power generation, marine and engineering industries, available in various materials, sizes, wall thicknesses and grades.
Long Radius Elbow Fittings Types We Supply
As a long radius elbow fittings manufacturer, we offer different elbow designs for industrial piping systems, with options for flow direction, material grade and project requirements.
- Long Radius 90° Elbow: Used for right-angle turns in process lines where a gradual change in direction helps manage pressure loss.

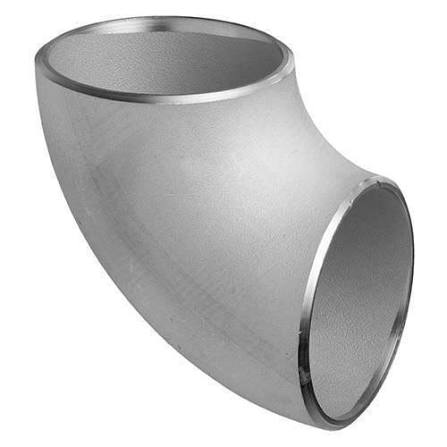

- Long Radius 45° Elbow: Suitable for gentle turns and pipe offsets where a sharp change in direction is not required.

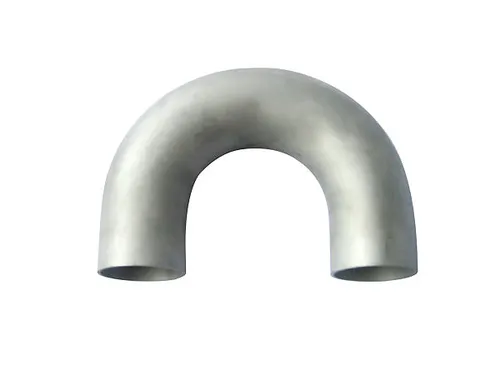

- Long Radius 180° Return Bend: Reverses the flow direction for applications such as heat exchangers, heater coils and tank piping.
- Long Radius Reducing Elbow: Changes the pipe direction and connection size in a single fitting.
- Seamless Long Radius Elbow: Suitable for demanding piping applications, depending on the material, pressure and temperature requirements.
- Welded Long Radius Elbow: Available for larger sizes, with additional weld inspection based on project specifications.
- Stainless Steel Long Radius Elbow (WP-S, WP-W, WP-WX): Available in ASTM A403 manufacturing categories for applications requiring corrosion resistance.
- Custom Angle Long Radius Elbow: Produced to specified angles, such as 22.5°, 30° and 60°, where supported by the design and manufacturing requirements.
We supply these types in different sizes, schedules and material grades to match piping drawings and applicable industry standards.
Why Choose Long Radius Elbow Fittings?
Long radius elbow fittings provide a gradual change in pipe direction, helping reduce turbulence and pressure loss in many piping systems. Their wider curve can support efficient fluid flow, reduce the load on pumps and help control operating costs over time. This makes them a practical choice for pipelines that carry water, oil, gas, steam and other industrial fluids.
The wider bend also helps distribute flow-related wear over a larger area compared with a tighter turn. This can be useful in systems that handle fast-moving fluids or abrasive materials. Long radius elbows are commonly used in oil and gas plants, chemical processing facilities, power stations and other industrial applications where space allows a gradual bend.
Standard dimensions also make planning and installation easier. By specifying the angle, pipe size, schedule, material grade and applicable standard, project teams can select fittings that match their piping layout and prepare for installation with greater accuracy.

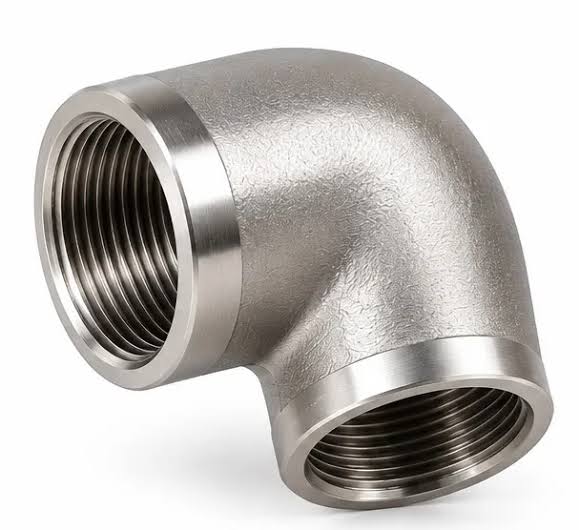

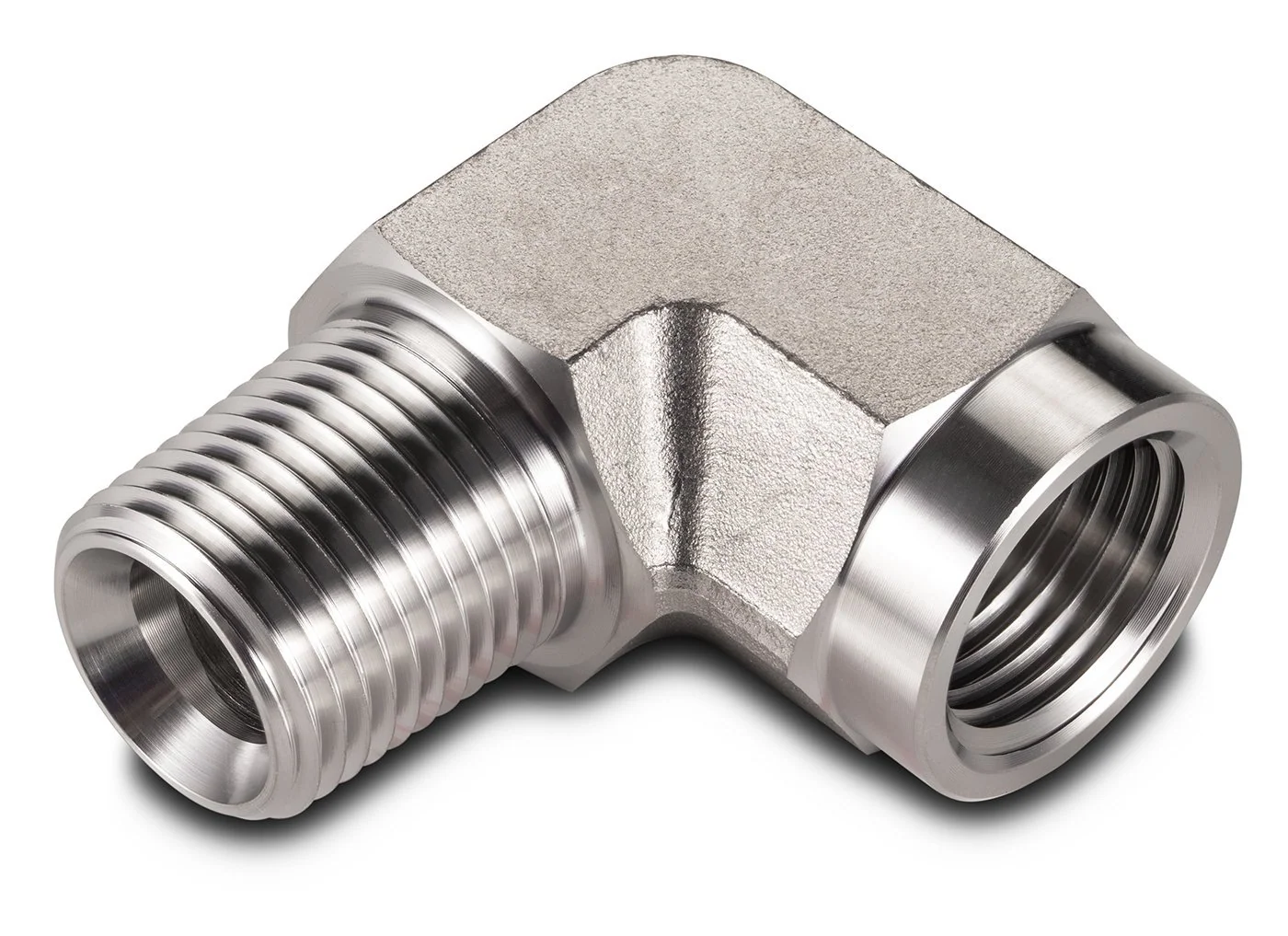

Types of Elbows Fittings
Explore our range of industrial elbow fittings, including 45° elbows, 90° elbows, street elbows, 180° elbows, long radius elbows and short radius elbows for diverse piping applications.
Get Certified Long Radius Elbow Fittings at Competitive Factory Prices
Long Radius Elbow Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Long Radius Elbow Fittings |
| Angle | 45°, 90°, 180° and custom angles |
| Radius | Long radius (1.5D) |
| Special Forms | Reducing elbow, 180° return bend |
| Butt Weld Size Range | 1/2" to 24" NB |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, MSS SP-43, MSS SP-75 |
| Material Standards | ASTM A234, A403, A420, A815, B366 |
| End Type | Bevel end per ASME B16.25 |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Angle, radius, size, schedule, grade and standard (for example: 90° LR elbow, 6", Sch 40, A234 WPB, ASME B16.9) |
| Custom Work | Special angles, walls and grades |
Long Radius Elbow Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
Long Radius Elbow Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Long Radius Elbow Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where This Long Radius Elbow Size Goes |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument and sample lines |
| 25 | 1" | 33.4 | Chemical dosing and utility air |
| 50 | 2" | 60.3 | Pump discharge and cooling water |
| 80 | 3" | 88.9 | Fire water and fuel supply |
| 100 | 4" | 114.3 | Steam and process headers |
| 150 | 6" | 168.3 | High-flow process lines |
| 200 | 8" | 219.1 | Main process headers |
| 300 | 12" | 323.9 | Transfer lines and cooling circuits |
| 400 | 16" | 406.4 | Refinery and plant mains |
| 600 | 24" | 609.6 | Pipelines and water transmission |
Long Radius Elbow Fittings Dimension Chart (ASME B16.9)
Dimension A is the centre-to-end of a 90° elbow, B is the centre-to-end of a 45° elbow, and O is the centre-to-centre of a 180° return. All dimensions are in mm.
| NPS | Pipe OD | 90° (A) | 45° (B) | 180° Return (O) | Sch 40 Wall | Sch 80 Wall |
|---|---|---|---|---|---|---|
| 1" | 33.4 | 38 | 16 | 76 | 3.38 | 4.55 |
| 1 1/4" | 42.2 | 48 | 20 | 95 | 3.56 | 4.85 |
| 1 1/2" | 48.3 | 57 | 24 | 114 | 3.68 | 5.08 |
| 2" | 60.3 | 76 | 32 | 152 | 3.91 | 5.54 |
| 2 1/2" | 73.0 | 95 | 40 | 190 | 5.16 | 7.01 |
| 3" | 88.9 | 114 | 48 | 229 | 5.49 | 7.62 |
| 4" | 114.3 | 152 | 64 | 305 | 6.02 | 8.56 |
| 5" | 141.3 | 190 | 79 | 381 | 6.55 | 9.53 |
| 6" | 168.3 | 229 | 95 | 457 | 7.11 | 10.97 |
| 8" | 219.1 | 305 | 127 | 610 | 8.18 | 12.70 |
| 10" | 273.1 | 381 | 159 | 762 | 9.27 | 15.09 |
| 12" | 323.9 | 457 | 190 | 914 | 10.31 | 17.48 |
| 14" | 355.6 | 533 | – | 1067 | 11.13 | 19.05 |
| 16" | 406.4 | 610 | – | 1219 | 12.70 | 21.44 |
| 20" | 508.0 | 762 | – | 1524 | 15.09 | 26.19 |
| 24" | 609.6 | 914 | – | 1829 | 17.48 | 30.96 |
For long radius elbows, A equals 1.5 times the NPS, and O equals 3 times the NPS, both multiplied by 25.4 to give mm. For a 45° elbow in larger sizes, B follows 0.625 × NPS × 25.4.
Long Radius Elbow Fittings Price
We quote long radius elbow fittings order by order, because steel and nickel prices shift often. The grade moves the price most: a 316L or duplex elbow costs more than a WPB carbon steel one, since nickel and molybdenum add to the metal cost. Size and wall come next, because a large, thick-walled elbow uses far more steel than a small, thin one.
Angle, quantity and testing also change the number. A 180° return uses more material than a 45° elbow, a larger lot lowers the cost per piece, and radiography, impact tests or 3.2 inspection add cost. Send us your list with angle, size, schedule, grade and quantity, and we will send you a clear quote.
| Material | Quote Basis | What Moves the Price |
|---|---|---|
| Carbon steel (WPB, WPL6) | Per piece or per kg | Steel rate and wall thickness |
| Stainless steel (304, 316L, 321) | Per piece or per kg | Nickel and molybdenum rates |
| Duplex and super duplex | Per piece or per kg | Nickel, chrome and nitrogen content |
| Alloy steel (WP11, WP22, WP91) | Per piece or per kg | Chrome and moly content |
Long Radius Elbow Fittings Features
Our long radius elbow fittings are designed to support smooth flow, reliable connections and different industrial piping requirements. Key features include:
- 1.5D Bend Radius: Provides a gradual change in direction that can help reduce turbulence and pressure loss.
- Reduced Wear: The wider curve can help distribute erosion over a larger area in high-velocity or abrasive flow applications.
- Standard Angle Options: Available in 45°, 90° and 180° designs, with applicable dimensions based on the relevant product standard.
- Wide Size and Schedule Range: Supplied in sizes from ½" to 24" NB, with wall thicknesses from Sch 5S to XXS, subject to availability.
- Multiple Material Grades: Options include carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel and nickel alloys.
- Weld-Ready Ends: Butt weld ends can be prepared to ASME B16.25 requirements for proper fit-up during installation.
- Wall Thickness Checks: The curved section is inspected to verify that it meets the specified wall thickness requirements.
- Material Traceability: Size, grade, schedule and heat number markings help link each fitting to its material test certificate, where applicable.
Long Radius Elbow Fittings Grades We Supply
We offer long radius elbow fittings in a variety of material grades to suit different pressure, temperature and corrosion requirements. Our range covers carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel, super duplex steel and nickel alloys for industrial piping applications.
- Carbon Steel – ASTM A234 WPB: Used in oil, water, steam and gas pipelines.
- High-Yield Carbon Steel – WPHY Grades: Suitable for pipelines that require higher material strength.
- Low-Temperature Steel – ASTM A420 WPL6: Designed for cold-service piping applications.
- Alloy Steel – ASTM A234 WP11, WP22 and WP91: Suitable for high-temperature systems in refineries, boilers and power plants.
- Stainless Steel – ASTM A403 WP304, 304L, 316, 316L, 321 and 347: Offers corrosion resistance for chemical and other industrial processes.
- Duplex Steel – ASTM A815 UNS S31803 and S32205: Combines high strength with resistance to chloride-related corrosion.
- Super Duplex Steel – UNS S32750: Used in demanding seawater, offshore and desalination applications.
- Nickel Alloys – Inconel, Monel and Hastelloy: Available for specialised services involving aggressive chemicals and high temperatures.
We work with customers to match the required grade to their project specifications. As a long radius elbow fittings supplier, we also provide material certificates and inspection documents according to order requirements.
Long Radius Elbow Fittings Standards and Certifications
We manufacture long radius elbow fittings to meet industry standards and project specifications. Our products follow ASME B16.9 for dimensions, ASME B16.25 for butt weld end preparation and applicable ASTM material standards, including A234 for carbon and alloy steel, A403 for stainless steel, A420 for low-temperature steel, A815 for duplex steel and B366 for nickel alloys. MSS SP-43 and MSS SP-75 apply to relevant product types.
As a long radius elbow fittings supplier in India, we support quality and traceability through ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications. Depending on the order, we provide EN 10204 3.1 material test certificates, chemical and mechanical test reports, dimensional inspection reports and PMI testing. EN 10204 3.2 certification and third-party inspections can also be arranged when specified by the project.
Long Radius Elbow Fittings Manufacturing Process
We pick the forming route by size and grade. For most sizes, we heat a seamless pipe blank and push it over a mandrel, which stretches the metal into the 1.5D curve. For large sizes, we press plate into halves, weld the seam, and radiograph it.
Forming thins the outer curve, so we start with extra wall and then measure the finished elbow against the standard minimum. We heat treat each lot after that: carbon steel gets normalised to refine its grain, and stainless steel and duplex get solution annealed to restore corrosion resistance.
Next, we trim the ends to length and cut the bevel to ASME B16.25. Stainless elbows go through pickling and passivation to remove scale, and we finish by stamping the size, grade, schedule and heat number on each piece before oiling, varnishing, sand blasting or polishing it.
Long Radius Elbow Fittings Quality Testing
A Long Radius Elbow Fittings Supplier in India has to prove the grade and the wall at the curve, so we test each lot in a fixed order. We start with Positive Material Identification, scanning every elbow with an XRF gun so a wrong grade never reaches the packing line. We then take samples from each heat for chemistry, tensile strength, yield and hardness tests, and compare the results with the standard.
Our inspectors measure the angle, centre-to-end dimension, bevel and wall thickness at the outer curve against ASME B16.9. For welded and large elbows, we run radiography, ultrasonic, dye penetrant or magnetic particle checks, and we hydrotest on request. Stainless steel elbows can go through the ASTM A262 intergranular corrosion test, and low temperature grades go through impact tests at your design temperature. A final visual check covers surface, weld ends and markings on every piece.
Long Radius Elbow Fittings Applications
- Oil and Gas Pipelines: Pipeline crews fit long radius elbow fittings at direction changes to keep pressure drop low across long runs.
- Refineries and Petrochemical: Alloy steel elbows carry hot hydrocarbons around furnaces, columns and reactors.
- Power Plants: WP22 and WP91 elbows take heat and pressure in steam and boiler feed lines.
- Pump Stations: The smooth 1.5D curve protects pumps by cutting turbulence on suction and discharge lines.
- Slurry and Abrasive Lines: The long sweep spreads wear along the curve, so mining and cement plants get longer elbow life.
- Chemical Processing: Stainless steel 316L and duplex elbows handle acids, alkalis and solvents.
- Water Treatment and Desalination: Super duplex and 316L elbows stand up to brine and seawater.
- HVAC and Chilled Water Mains: Contractors buy from a trusted Long Radius Elbow Fittings Supplier in India like us for large chilled water and fire water mains.
Why Choose Sachiya Steel International as Your Long Radius Elbow Fittings Manufacturer in India?
You should choose us because we have been manufacturing and exporting pipe fittings for over two decades. Since 2005, we have served customers in 85+ countries and built experience in meeting different industrial piping requirements. Our production capacity of up to 100 tons per month allows us to handle regular orders, bulk quantities and custom requirements.
We offer long radius elbows in carbon steel, stainless steel, alloy steel and duplex steel, with different sizes and grades to suit your project. We focus on accurate dimensions, suitable material selection and quality checks. Our ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, along with TÜV approval, support our commitment to quality.
We also help with material certificates, inspection reports, export packaging and shipping arrangements. From selecting the right fitting to delivering your order, we aim to make the process simple with competitive pricing, clear communication and reliable delivery.
Countries We Export To
Since 2005, we have expanded our export network to 85+ countries, supplying long radius elbow fittings for industrial piping projects worldwide. We serve customers across North America, Europe, the Middle East, Asia-Pacific, Africa and South America, supporting industries such as oil and gas, petrochemicals, power generation and chemical processing.
Our export destinations include:
- North America: USA, Canada and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam and Australia
- Africa: South Africa, Nigeria, Egypt and Kenya
- South America: Brazil, Chile and Peru
We prepare orders for international transport with suitable packaging and the required shipping documents. Material test certificates and inspection reports are also available according to order specifications. Our team works to keep export arrangements clear and ensure fittings reach customers safely and on schedule.
