Butt Weld Reducer Fittings Manufacturer in India
Butt Weld Reducer Fittings Manufacturer in India
Sachiya Steel International is a leading Butt Weld Reducer Fittings Manufacturer in India, offering pipe fittings that connect pipes of different diameters through full-penetration welded joints. Established in 2005, we have 20+ years of experience in supplying butt weld reducers in carbon steel, stainless steel, alloy steel, duplex steel and nickel alloys. Our product range includes concentric and eccentric reducers in seamless and welded forms, with dimensions matched to the pipe sizes and wall thicknesses on your drawings.
We supply butt weld reducer fittings in sizes from 1/2″ to 24″ NB on the large end, with schedules and bevel ends to suit project requirements. Material options include ASTM A234 WPB, WPL6, WP11, WP22, ASTM A403 stainless steel grades and ASTM A815 duplex grades, subject to availability. As an ISO-certified, TÜV-approved and MSME-registered company, we can manufacture and export up to 100 tonnes per month, serving customers across 85+ countries with inspection and material documentation available as required.
What Are Butt Weld Reducer Fittings?
Butt weld reducer fittings are pipe fittings that connect a larger pipe to a smaller pipe by welding the bevelled end of the fitting directly to the bevelled end of each pipe. The two ends meet face to face, and a full-penetration weld joins them. The body between the two ends tapers from the large diameter to the small diameter.

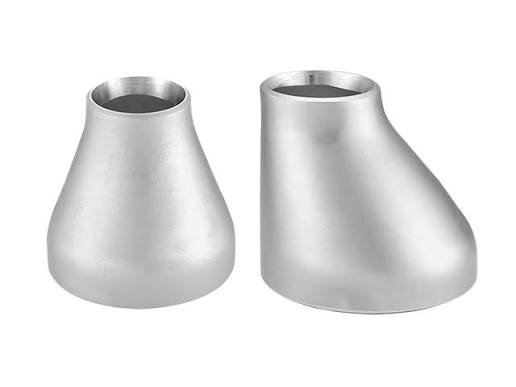

Two shapes are available. A concentric reducer keeps both ends on the same centre line, and an eccentric reducer offsets the small end so one side stays flat. Reducer sizes are written with the large end first, for example 8″ × 6″, and the fittings are manufactured to standards such as ASME B16.9, which covers dimensions and tolerances. Wall thickness, material grade and pressure capacity depend on the fitting specifications, piping design and operating conditions.

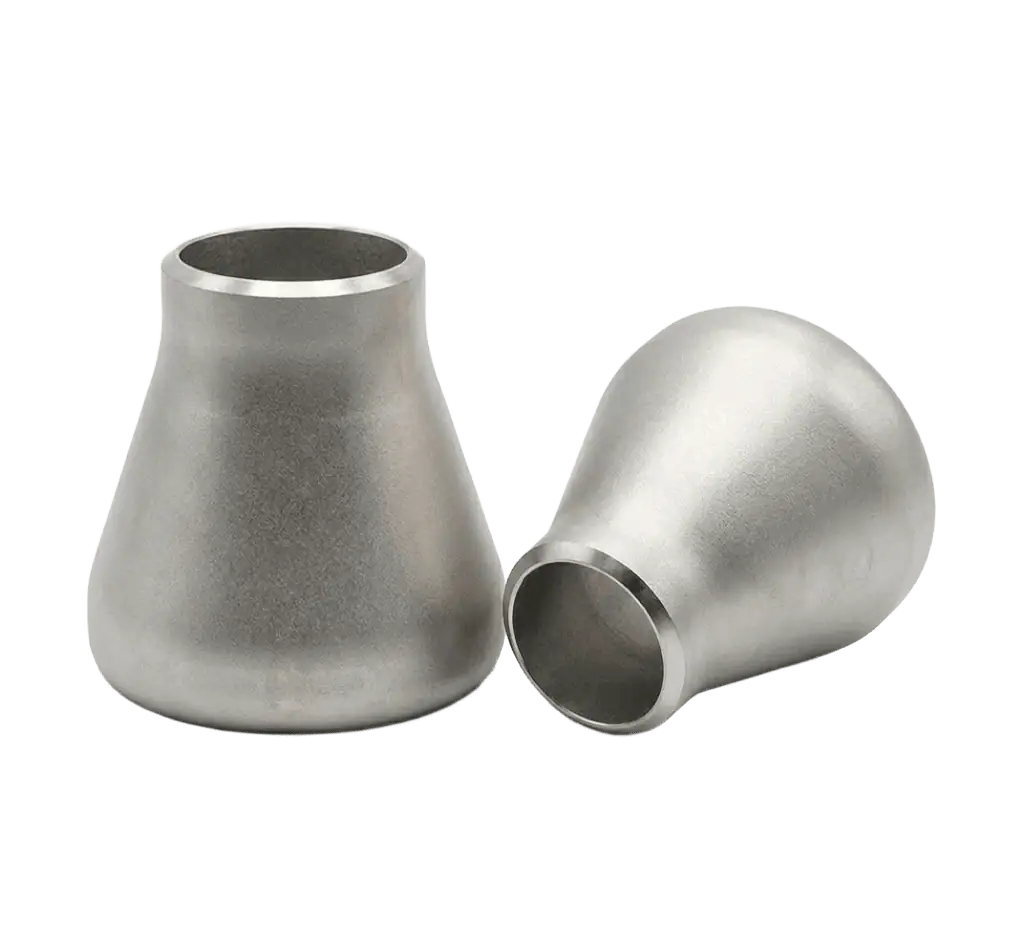

Butt Weld Reducer Fittings
High-quality butt weld reducer fittings are available in stainless steel, carbon steel, alloy steel, duplex and nickel alloys, in concentric and eccentric designs. Offered in various sizes and grades, including SS 304, 316, ASTM A234 WPB, Duplex 2205 and Inconel 625, these fittings meet industrial piping requirements for strength, durability and reliable performance.
Butt Weld Reducer Fittings Types We Supply
As a reliable butt weld reducer fittings manufacturer, we supply a wide range of reducers designed to connect pipes of different diameters while maintaining efficient flow and reliable connections.
- Concentric Reducers: Designed for straight, symmetrical transitions between larger and smaller pipe sizes.
- Eccentric Reducers: Ideal for piping systems that require offset transitions to suit installation and flow requirements.
- Carbon Steel Reducers: Suitable for industrial piping systems in oil and gas, power generation, and petrochemical plants.
- Stainless Steel Reducers: Provide excellent corrosion resistance for chemical processing, food processing, and other demanding applications.
- Alloy Steel Reducers: Suitable for high-temperature and high-pressure piping systems, depending on the material grade.
- Duplex Steel Reducers: Offer a combination of strength and corrosion resistance for demanding industrial environments.
- Heavy-Wall Reducers: Available for piping systems that require specific wall thicknesses and mechanical strength.
- Custom-Sized Reducers: Manufactured to meet your required dimensions, material specifications, and project needs.
We supply butt weld reducer fittings in various sizes, wall thicknesses, and material grades to meet industry standards and customer specifications.
Why Choose Butt Weld Reducer Fittings?
Butt weld reducer fittings provide a strong, permanent connection between pipes of different diameters. They help maintain smooth flow, reduce turbulence, and support efficient piping system performance.
- Secure Connections: Create strong welded joints with minimal leakage risk when properly installed.
- Smooth Flow Transition: Help maintain efficient fluid flow between different pipe sizes.
- High Pressure Resistance: Suitable for demanding operating conditions when selected according to system requirements.
- Long Service Life: Offer reliable performance with proper material selection and maintenance.
- Wide Material Options: Available in carbon steel, stainless steel, alloy steel, duplex, and other grades.
- Versatile Applications: Used in oil and gas, petrochemical, power generation, and other industrial piping systems.
Choosing the right butt weld reducer fittings helps improve piping system reliability, efficiency, and long-term performance.
Types of Reducers Fittings
Explore our range of industrial reducer fittings, including concentric reducers, eccentric reducers, swage reducers, threaded reducers, socket weld reducers and butt weld reducers for diverse piping applications.
Concentric Reducer Fittings
→
Eccentric Reducer Fittings
→
Swage Reducer Fittings
→
Threaded Reducer Fittings
→
Socket Weld Reducer Fittings
→
Butt Weld Reducer Fittings
→Get Certified Butt Weld Reducer Fittings at Competitive Factory Prices
Butt Weld Reducer Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | Butt Weld Reducer Fittings |
| Types | Concentric, eccentric (FOT and FOB), seamless, welded, heavy wall, different wall |
| Size Range (Large End) | 1/2" to 24" NB |
| Size Pairs | Any ASME B16.9 combination and special pairs on request |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, with different walls on each end on request |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, MSS SP-43, MSS SP-75 |
| Material Standards | ASTM A234, A403, A420, A815, B366 |
| End Type | Bevel end per ASME B16.25 |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, stress relieving, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| How to Order | Large size × small size, type, wall on each end, grade and standard (for example: Concentric Butt Weld Reducer 8" × 6", Sch 40, A234 WPB, ASME B16.9) |
| Custom Work | Special size pairs, walls, grades and lengths |
Butt Weld Reducer Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
Butt Weld Reducer Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
Butt Weld Reducer Fittings Size Chart
| Large × Small | Small End as % of Large | Where This Butt Weld Reducer Goes |
|---|---|---|
| 2" × 1" | 50% | Instrument and dosing line transitions |
| 3" × 2" | 67% | Utility and cooling water lines |
| 4" × 3" | 75% | Fire water and fuel lines |
| 4" × 2" | 50% | Pump and valve connections |
| 6" × 4" | 67% | Pump suction and discharge lines |
| 8" × 6" | 75% | Process header step-downs |
| 8" × 4" | 50% | Heat exchanger and vessel nozzles |
| 10" × 8" | 80% | Plant header transitions |
| 12" × 8" | 67% | Cooling circuit step-downs |
| 14" × 10" | 71% | Refinery header transitions |
| 16" × 12" | 75% | Main line step-downs |
| 20" × 16" | 80% | Water transmission transitions |
| 24" × 20" | 83% | Pipeline and large header transitions |
Butt Weld Reducer Fittings Dimension Chart (ASME B16.9)
Dimension H is the overall length from the large end to the small end, and ASME B16.9 sets it by the large end size. Concentric and eccentric reducers share the same H value. All dimensions are in mm.
| Large × Small | Large OD | Small OD | Overall Length (H) |
|---|---|---|---|
| 2" × 1" | 60.3 | 33.4 | 76 |
| 3" × 2" | 88.9 | 60.3 | 89 |
| 4" × 3" | 114.3 | 88.9 | 102 |
| 4" × 2" | 114.3 | 60.3 | 102 |
| 6" × 4" | 168.3 | 114.3 | 140 |
| 6" × 3" | 168.3 | 88.9 | 140 |
| 8" × 6" | 219.1 | 168.3 | 152 |
| 8" × 4" | 219.1 | 114.3 | 152 |
| 10" × 8" | 273.1 | 219.1 | 178 |
| 10" × 6" | 273.1 | 168.3 | 178 |
| 12" × 10" | 323.9 | 273.1 | 203 |
| 12" × 8" | 323.9 | 219.1 | 203 |
| 14" × 10" | 355.6 | 273.1 | 330 |
| 16" × 12" | 406.4 | 323.9 | 356 |
| 18" × 14" | 457.2 | 355.6 | 381 |
| 20" × 16" | 508.0 | 406.4 | 508 |
| 24" × 20" | 609.6 | 508.0 | 508 |
For any pair not shown, we cut the reducer to the ASME B16.9 table for that large size or to your drawing. Wall thickness follows the schedule of each connecting pipe.
Butt Weld Reducer Fittings Grades We Supply
As a reliable butt weld reducer fittings supplier, we offer a wide selection of material grades to suit different industrial applications, operating temperatures, and pressure requirements.
- Carbon Steel: ASTM A234 WPB for general piping applications and ASTM A420 WPL6 for low-temperature service.
- High-Yield Steel: MSS SP-75 grades for high-strength pipeline requirements.
- Alloy Steel: ASTM A234 WP11, WP22, and WP91 for high-temperature applications in refineries, boilers, and power plants.
- Stainless Steel: ASTM A403 WP304, WP304L, WP316, WP316L, WP321, and WP347 for corrosion-resistant piping systems.
- Duplex and Super Duplex Steel: ASTM A815 UNS S31803, S32205, and S32750 for demanding environments, including offshore and seawater applications.
- Nickel Alloys: Inconel, Monel, and Hastelloy for specialised applications requiring specific corrosion resistance and performance.
We supply butt weld reducer fittings in different grades and specifications to meet your project requirements and industry standards.
Butt Weld Reducer Fittings Standards and Certifications
We supply butt weld reducer fittings that meet applicable industry standards and project specifications. Our range includes reducers manufactured to ASME B16.9, stainless steel fittings to MSS SP-43, and high-yield pipeline fittings to MSS SP-75, where applicable.
Our material options comply with relevant ASTM standards, including ASTM A234 for carbon and alloy steel, ASTM A403 for stainless steel, ASTM A420 for low-temperature steel, ASTM A815 for duplex steel, and ASTM B366 for nickel alloys. We also follow ASME B16.25 for weld end preparation where required.
As a butt weld reducer fittings supplier in India, we support quality assurance with material test certificates, chemical and mechanical test reports, and dimensional inspection reports. EN 10204 Type 3.1 certificates, Type 3.2 certification, PMI testing, and third-party inspections are available according to project requirements.
Butt Weld Reducer Fittings Applications
- Oil and Gas Pipelines: Butt weld reducer fittings change the line size at metering skids, valve stations and delivery points.
- Refineries and Petrochemical Plants: Alloy steel butt weld reducers join large process headers to smaller equipment nozzles.
- Power Plants: WP22 and WP91 reducers carry steam and boiler feed through changes in line size at high temperature and pressure.
- Chemical Processing: Stainless steel 316L and duplex reducers connect large transfer lines to smaller reactors and dosing units.
- Pharmaceutical and Food Plants: Polished stainless steel reducers give smooth transitions in hygienic piping.
- Water Treatment and Desalination: Super duplex and 316L reducers join large brine and seawater mains to smaller treatment units.
- Pump Stations: Eccentric butt weld reducers with the flat side up help keep air out of suction lines, and many projects source them from a butt weld reducer fittings supplier in India like us.
- Fire Protection and HVAC: Carbon steel reducers step down from large risers and chilled water mains to branch and coil connections.
- Shipbuilding and Offshore: Compact reducers join seawater cooling and fire fighting lines of different sizes on vessels and platforms.
Butt Weld Reducer Fittings Manufacturing Capacity and Export Capability
Our manufacturing facility in Vasai, near Mumbai, India, can produce up to 100 tonnes of butt weld reducer fittings per month. We manufacture concentric and eccentric reducers in sizes from 1/2" to 24" NB (large end) in carbon steel, stainless steel, alloy steel, duplex steel, and other material grades.
We handle forming, heat treatment, and machining at our own facility. This helps us maintain quality, control production, and supply different sizes and material grades in a single order.
We can export up to 100 tonnes of fittings per month. We handle orders ranging from small sample quantities to full container loads. Our team arranges shipments through Nhava Sheva (JNPT) and Mundra ports and manages export documentation in-house.
We supply butt weld reducer fittings to customers in over 85 countries. We focus on secure packaging, smooth customs clearance, and timely delivery to meet the needs of international buyers, distributors, and industrial project suppliers.
Why Choose Us as Your Butt Weld Reducer Fittings Manufacturer in India?
You should choose us because we have been manufacturing and supplying industrial steel products since 2005. With over 20+ years of experience, we understand the needs of industrial buyers and provide butt weld reducer fittings that meet different size, material, and project requirements.
We manufacture concentric and eccentric reducers in carbon steel, stainless steel, alloy steel, low-temperature steel, duplex, super duplex, and nickel alloys. Our products meet applicable standards, including ASME B16.9, MSS SP-43, and MSS SP-75, as required.
Our in-house forming, heat treatment, and machining facilities help us maintain quality and control production. With a monthly manufacturing and export capacity of up to 100 tonnes, we handle orders from small quantities to full container loads.
We supply customers in over 85 countries and manage export documentation, packaging, and shipment arrangements through Nhava Sheva (JNPT) and Mundra ports. Our ISO 9001:2015 and ISO 14001:2015 certifications, TÜV approval, and MSME registration support our commitment to quality.
Countries We Export To
We export butt weld reducer fittings to customers in over 85+ countries worldwide. As an experienced butt weld reducer fittings supplier in India, we serve industries such as oil and gas, refineries, power generation, water treatment, and shipbuilding. Our export network covers major markets across the following regions:
- North America: USA, Canada, and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands, and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, and Australia
- Africa: South Africa, Nigeria, Egypt, and Kenya
- South America: Brazil, Chile, and Peru
We focus on safe packaging, reliable shipping, and timely delivery for every export order. We provide EN 10204 3.1 material test certificates and can arrange 3.2 certification or third-party inspection upon request. Our team also handles export documentation in-house and prepares shipments for sea freight to support smooth customs clearance and delivery within agreed schedules.
