What Are 90° Street Elbow Fittings?

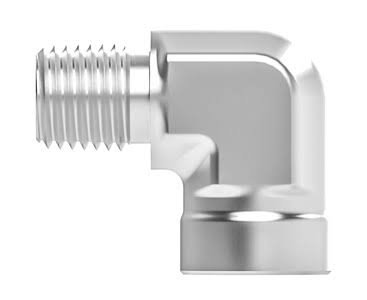

90° street elbow fittings are pipe fittings that change the direction of a pipeline by 90 degrees. Unlike standard elbows, they typically feature one male threaded end and one female threaded end, allowing them to connect directly to another threaded fitting without requiring an additional nipple.
These fittings are commonly used in compact piping layouts where space is limited and quick assembly is important. They are available in different sizes and materials, including stainless steel, carbon steel and alloy steel, depending on the application. Industries such as oil and gas, chemical processing, plumbing and general engineering use street elbows to create right-angle connections in compatible threaded piping systems.

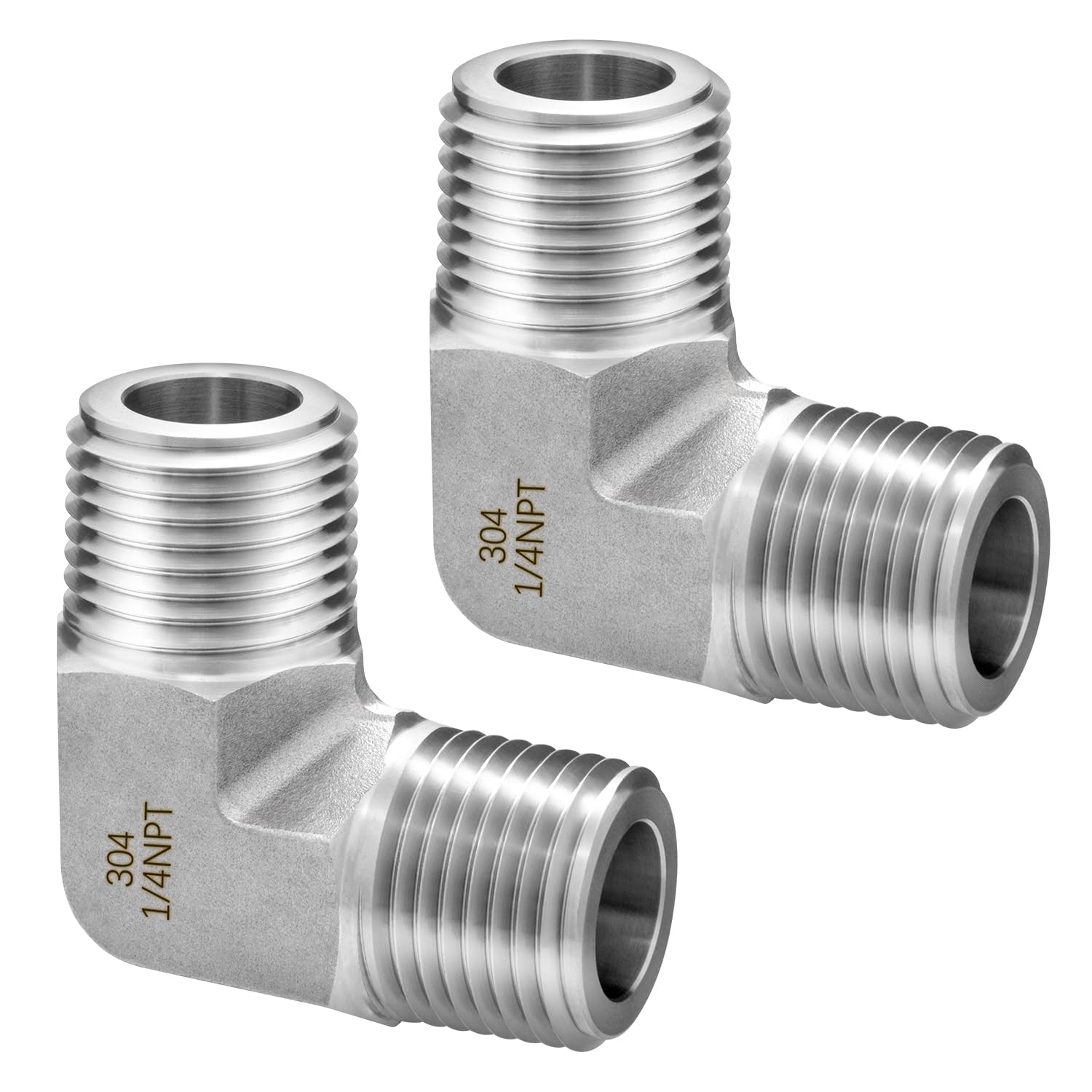

90° Street Elbow Fittings

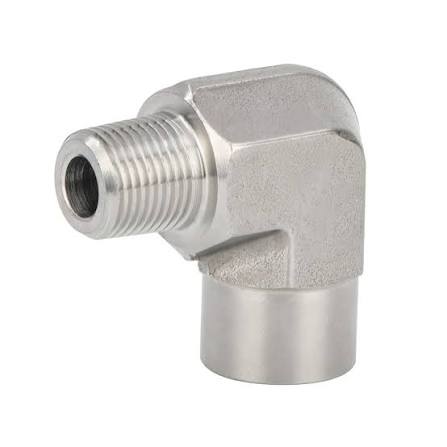

High-quality 90° street elbow fittings featuring male and female threaded ends, designed for compact piping connections across oil and gas, petrochemical, chemical, power generation, marine and engineering industries, available in various materials, sizes, wall thicknesses and grades.
Why Choose 90° Street Elbow Fittings?
A street elbow removes a nipple and a joint from your layout. You screw the male end into a valve, tee or coupling, and the turn happens right there, so the line sits closer to the wall, the frame or the equipment. Every joint you skip is one less place for a leak.
That matters most in small-bore lines. Instrument air headers, hydraulic manifolds and pump connections often leave only a few centimetres to work with, and a street elbow fits that gap where a standard elbow and nipple would not.
Forged construction adds strength. We form the body from a solid billet, not from cast metal, so the grain follows the shape and the fitting handles high pressure and shock load. Fitters also like the quick installation: threaded joints need no welding, so crews can fit and test lines faster, with only PTFE tape or thread sealant.
90° Street Elbow Fittings Types We Supply
As a 90° street elbow fittings manufacturer, we offer different fitting types to suit threaded piping systems, material requirements and operating conditions. Our range covers carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel and specialised thread configurations.
- Carbon Steel Street Elbow (A105): Suitable for general industrial applications involving water, oil, steam and air.
- Stainless Steel Street Elbow (F304, F304L, F316, F316L): Used in piping systems that require corrosion resistance.
- Alloy Steel Street Elbow (F5, F9, F11, F22, F91): Designed for high-temperature applications, including boiler and steam systems.
- Low-Temperature Street Elbow (A350 LF2): Suitable for piping systems operating in low-temperature conditions.
- Duplex and Super Duplex Street Elbow (F51, F53, F55): Offers high strength and corrosion resistance for demanding marine and industrial environments.
- NPT Street Elbow: Features tapered threads according to ASME B1.20.1 for compatible threaded connections.
- BSPT and BSPP Street Elbow: Available with thread configurations based on ISO 7-1 and ISO 228-1 requirements.
- Reducing Street Elbow: Combines a 90° turn with a change in connection size.
We supply street elbows in different sizes and specifications according to customer requirements, material availability and applicable standards.
Types of Elbows Fittings
Explore our range of industrial elbow fittings, including 45° elbows, 90° elbows, street elbows, 180° elbows, long radius elbows and short radius elbows for diverse piping applications.
Get Certified 90° Street Elbow Fittings at Competitive Factory Prices
90° Elbow Fittings Specifications
| Property | Specification |
|---|---|
| Product Name | 90° Elbow Fittings |
| Angle | 90° (custom angles on request) |
| Radius | Long radius (1.5D), short radius (1D), 3D, 5D |
| Special Forms | Reducing elbow, mitre elbow |
| Butt Weld Size Range | 1/2" to 24" NB |
| Forged Size Range | 1/8" to 4" NB |
| Wall Thickness | Sch 5S, 10S, 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Materials | Carbon steel, low temperature carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys |
| Dimension Standards | ASME B16.9, ASME B16.28, ASME B16.11, MSS SP-43, MSS SP-75 |
| Material Standards | ASTM A234, A403, A420, A815, A182 |
| End Type | Bevel end per ASME B16.25, socket weld, threaded |
| Construction | Seamless and welded |
| Surface Finish | Black, oil coated, pickled, sand blasted, polished |
| Heat Treatment | Normalising, solution annealing |
| Testing | PMI, hardness, dimensional, hydrostatic, NDT |
| Certification | EN 10204 3.1, 3.2 on request |
| Custom Work | Special radius, angle, wall and grade |
90° Elbow Fittings Chemical Composition
Values are in %, maximum unless a range is shown.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A234 WPB | 0.30 | 0.29–1.06 | 0.10 min | 0.050 | 0.058 | 0.40 | 0.40 | 0.15 |
| A403 WP304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | – |
| A403 WP304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–13.0 | – |
| A403 WP316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| A403 WP316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–15.0 | 2.0–3.0 |
| A403 WP321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | – |
| A815 UNS S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 |
WP321 holds titanium at 5 times the carbon content (minimum). Duplex S31803 holds 0.08–0.20% nitrogen.
90° Elbow Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A234 WPB | 415–585 | 240 min | 22 min |
| A420 WPL6 | 415–585 | 240 min | 22 min |
| A234 WP22 Class 1 | 415–585 | 205 min | 22 min |
| A403 WP304 / WP316 / WP321 | 515 min | 205 min | 28 min |
| A403 WP304L / WP316L | 485 min | 170 min | 28 min |
| A815 UNS S31803 | 620 min | 450 min | 25 min |
90° Elbow Fittings Size Chart
| NB | Inch | Pipe OD (mm) | Where This 90° Elbow Size Goes |
|---|---|---|---|
| 15 | 1/2" | 21.3 | Instrument tubing and sample panels |
| 25 | 1" | 33.4 | Chemical dosing and compressed air |
| 50 | 2" | 60.3 | Pump skids and cooling water |
| 80 | 3" | 88.9 | Fire water and fuel supply |
| 100 | 4" | 114.3 | Steam headers and process lines |
| 150 | 6" | 168.3 | Pump suction and discharge turns |
| 200 | 8" | 219.1 | Main process headers |
| 300 | 12" | 323.9 | Transfer lines and cooling circuits |
| 400 | 16" | 406.4 | Refinery and plant mains |
| 600 | 24" | 609.6 | Water transmission and pipelines |
90° Elbow Fittings Dimension Chart (ASME B16.9 and B16.28)
Dimension A runs from the centre of the elbow to the weld end. All dimensions are in mm.
| NPS | Pipe OD | Long Radius (A) | Short Radius (A) | Sch 40 Wall | Sch 80 Wall |
|---|---|---|---|---|---|
| 1" | 33.4 | 38 | 25 | 3.38 | 4.55 |
| 1 1/4" | 42.2 | 48 | 32 | 3.56 | 4.85 |
| 1 1/2" | 48.3 | 57 | 38 | 3.68 | 5.08 |
| 2" | 60.3 | 76 | 51 | 3.91 | 5.54 |
| 2 1/2" | 73.0 | 95 | 64 | 5.16 | 7.01 |
| 3" | 88.9 | 114 | 76 | 5.49 | 7.62 |
| 4" | 114.3 | 152 | 102 | 6.02 | 8.56 |
| 5" | 141.3 | 190 | 127 | 6.55 | 9.53 |
| 6" | 168.3 | 229 | 152 | 7.11 | 10.97 |
| 8" | 219.1 | 305 | 203 | 8.18 | 12.70 |
| 10" | 273.1 | 381 | 254 | 9.27 | 15.09 |
| 12" | 323.9 | 457 | 305 | 10.31 | 17.48 |
| 14" | 355.6 | 533 | 356 | 11.13 | 19.05 |
| 16" | 406.4 | 610 | 406 | 12.70 | 21.44 |
| 20" | 508.0 | 762 | 508 | 15.09 | 26.19 |
| 24" | 609.6 | 914 | 610 | 17.48 | 30.96 |
90° Elbow Fittings Price
Our 90° elbow fittings price depends on the order, because steel and nickel markets move week to week. The grade carries the biggest weight: a 316L or duplex elbow costs more than a WPB carbon steel elbow, since nickel and molybdenum add to the metal cost. Size and schedule follow, because a large, thick-walled elbow uses far more steel than a small, thin one.
Radius, quantity and tests also shift the number. A short radius elbow and a long radius elbow use different amounts of material, a bigger lot brings the per-piece cost down, and radiography, impact tests or 3.2 inspection add to it. Send your list with size, radius, schedule, grade and quantity, and we will send back a clear quote.
| Material | Quote Basis | What Moves the Price |
|---|---|---|
| Carbon steel (WPB, WPL6) | Per piece or per kg | Steel rate and wall thickness |
| Stainless steel (304, 316L, 321) | Per piece or per kg | Nickel and molybdenum rates |
| Duplex and super duplex | Per piece or per kg | Nickel, chrome and nitrogen content |
| Alloy steel (WP11, WP22, WP91) | Per piece or per kg | Chrome and moly content |
90° Elbow Fittings Features
Our 90° elbow fittings are designed to meet different industrial piping requirements, with options for flow direction, pipe size, material grade and wall thickness.
- Smooth Flow Direction: The long radius design provides a gradual turn, helping reduce turbulence and pressure loss in suitable piping systems.
- Reliable Weld Connections: Butt weld ends can be prepared to ASME B16.25 requirements for proper fit-up during installation.
- Long and Short Radius Options: Choose long radius elbows for smoother flow or short radius designs where installation space is limited.
- Wide Size and Schedule Range: We offer butt weld elbows in sizes from ½" to 24" NB, with wall thicknesses ranging from Sch 5S to XXS, subject to availability.
- Multiple Material Grades: Our range includes carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel and nickel alloys.
- Wall Thickness Control: We check finished elbow dimensions and wall thickness against applicable specifications to help meet project requirements.
- Application-Specific Selection: Material grade, wall thickness and operating conditions determine whether an elbow is suitable for the required pressure and temperature.
- Material Traceability: Size, grade, schedule and heat number identification support product traceability and matching with material test certificates, as applicable.
90° Elbow Fittings Grades We Supply
We manufacture and supply 90° elbow fittings in a wide range of material grades for industrial piping applications. As an experienced 90° elbow fittings supplier, we offer carbon steel, low-temperature carbon steel, alloy steel, stainless steel, duplex steel, super duplex steel and nickel alloy options to meet different operating conditions.
- Carbon Steel – ASTM A234 WPB: Suitable for oil, gas, water and steam piping.
- Low-Temperature Carbon Steel – ASTM A420 WPL6: Used in cold-service applications requiring impact toughness at low temperatures.
- Alloy Steel – ASTM A234 WP11, WP22 and WP91: Designed for high-temperature piping in boilers, furnaces and power plants.
- Stainless Steel – ASTM A403 WP304, 304L, 316, 316L, 321, 347 and 310S: Suitable for applications requiring corrosion and heat resistance.
- Duplex Steel – ASTM A815 UNS S31803 and S32205: Offers high strength and resistance to chloride-related corrosion.
- Super Duplex Steel – UNS S32750: Suitable for demanding offshore, marine and desalination applications.
- Nickel Alloys – Inconel, Monel and Hastelloy: Available for specialised services involving aggressive chemicals and high temperatures.
We supply these grades according to customer specifications, project requirements and material availability, with inspection reports and material certificates available as required.
90° Elbow Fittings Standards and Certifications
As an experienced 90° Elbow Fittings Supplier in India, we build every elbow to the codes your inspector will check. Long radius elbows follow ASME B16.9, short radius elbows follow ASME B16.28, and light-wall stainless elbows follow MSS SP-43. High-yield carbon elbows meet MSS SP-75, forged socket weld and threaded elbows meet ASME B16.11, and every weld end follows ASME B16.25. For materials, we work to ASTM A234, A403, A420 and A815.
Our systems hold ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018, and we meet PED 2014/68/EU for projects in Europe. Each order carries a Mill Test Certificate to EN 10204 3.1, with chemical and mechanical test reports, a dimensional inspection report and a PMI report. We can also arrange EN 10204 3.2 or third-party inspection when a project demands it.
90° Elbow Fittings Manufacturing Process
As a reliable 90° Elbow Fittings Manufacturer in India, we choose the route by size and grade. For most sizes, we heat a seamless pipe blank and push it over a mandrel, which stretches the metal into the 90° curve. For big diameters, we press plate into halves, weld the seam, and radiograph it.
Heat treatment follows forming. We normalise carbon steel to refine the grain, and we solution anneal stainless steel and duplex to restore corrosion resistance. Next, we trim both ends, cut the bevel to ASME B16.25, and measure the wall on the outer curve, because that spot thins the most during forming.
Stainless steel elbows go through pickling and passivation to strip scale and restore the protective film. We finish by stamping the size, grade, schedule and heat number on each piece, then oil, varnish, sand blast or polish it to your order.
90° Elbow Fittings Quality Testing
A 90° Elbow Fittings Supplier in India has to prove the grade and the dimensions, so we test each lot in a fixed order. We start with Positive Material Identification, scanning every elbow with an XRF gun, so a wrong grade never reaches the packing line. We then take samples from each heat and test chemistry, tensile strength, yield and hardness against the standard.
Our inspectors measure the right angle, centre-to-end dimension, wall thickness and bevel against ASME B16.9 or B16.28. For welded and large elbows, we run radiography, ultrasonic, dye penetrant or magnetic particle tests, and we hydrotest on request. Stainless steel elbows can go through the ASTM A262 intergranular corrosion test, and low temperature grades go through impact tests at your design temperature. Every piece gets a final visual check on surface, weld ends and markings.
90° Elbow Fittings Applications
- Oil and Gas: Pipeline and gathering crews rely on 90° long radius elbow fittings to turn crude and gas with minimal pressure loss.
- Refineries and Petrochemical: Alloy steel elbows carry hot hydrocarbons around furnaces, columns and reactors.
- Power Plants: WP22 and WP91 elbows take the heat and pressure in steam and boiler feed lines.
- Chemical Processing: Stainless steel 316L and duplex elbows handle acids, alkalis and solvents.
- Pharmaceutical and Food: Polished stainless steel 90° elbow fittings give hygienic, easy-to-clean corners.
- Water Treatment and Desalination: Super duplex elbows hold up against brine and seawater.
- Shipbuilding and Offshore: Short radius elbows fit into compact engine rooms and fire fighting manifolds.
- Pumping Stations and Plant Rooms: Contractors source from a 90° Elbow Fittings Supplier in India like us for suction and discharge corners in crowded plant rooms.
90° Elbow Fittings Packaging and Shipping
We pack our 90° elbow fittings according to their size, material and shipping requirements to protect them during handling and transit. Each fitting receives suitable surface protection, while end caps help prevent damage to the bevelled ends. We use wooden crates, plywood boxes or secured pallets based on the order quantity and transport method. Stainless steel elbows are packed separately from carbon steel products to reduce the risk of contamination.
For domestic and international shipments, we arrange suitable export packaging and prepare documents such as commercial invoices, packing lists, EN 10204 3.1 material test certificates, certificates of origin and bills of lading, where applicable. Additional inspection reports and documentation can be provided according to customer and project requirements.
Why Choose Sachiya Steel International as Your 90° Elbow Fittings Manufacturer in India?
Choose us for our experience in producing industrial pipe fittings and our ability to meet different project specifications. Since 2005, we have developed expertise in supplying piping components to customers across 85+ countries, with a capacity of up to 100 tons per month. We handle both small orders and large-volume requirements across a wide range of sizes and material grades.
We pay close attention to material selection, dimensions and manufacturing requirements to ensure our fittings meet the intended application. Our range covers carbon steel, stainless steel, alloy steel, duplex steel and other specialised materials, with applicable standards and inspection documentation available according to order specifications. Our ISO 9001:2015 and ISO 14001:2015 certifications and TÜV approval support our commitment to quality.
From product selection and order coordination to export packing and shipping, we work to make procurement straightforward for our customers. Whether you need standard 90° elbows or fittings for a specific industrial project, we focus on clear communication, competitive pricing and dependable service.
Countries We Export To
We export 90° elbow fittings to customers in 85+ countries across major industrial markets worldwide. Our export network covers North America, Europe, the Middle East, Asia-Pacific, Africa and South America, serving applications in oil and gas, petrochemicals, power generation, marine engineering and water treatment.
Our export destinations include:
- North America: USA, Canada and Mexico
- Europe: United Kingdom, Germany, France, Italy, Netherlands and Spain
- Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain
- Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam and Australia
- Africa: South Africa, Nigeria, Egypt and Kenya
- South America: Brazil, Chile and Peru
We prepare shipments according to destination and customer requirements, with suitable export packaging and supporting documents, including commercial invoices, packing lists and material test certificates. Additional inspection reports and certificates can be arranged when required, helping ensure our 90° elbow fittings are ready for delivery to domestic and international project locations.
